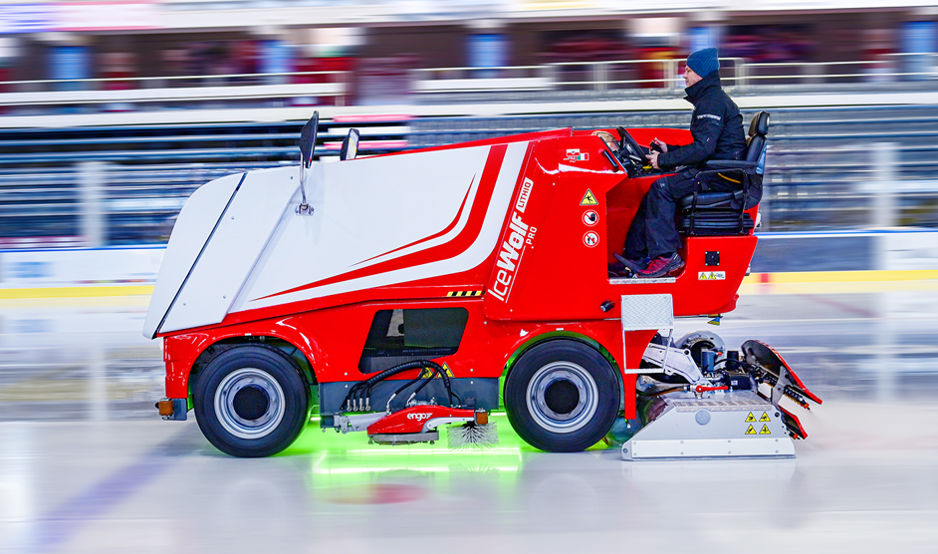

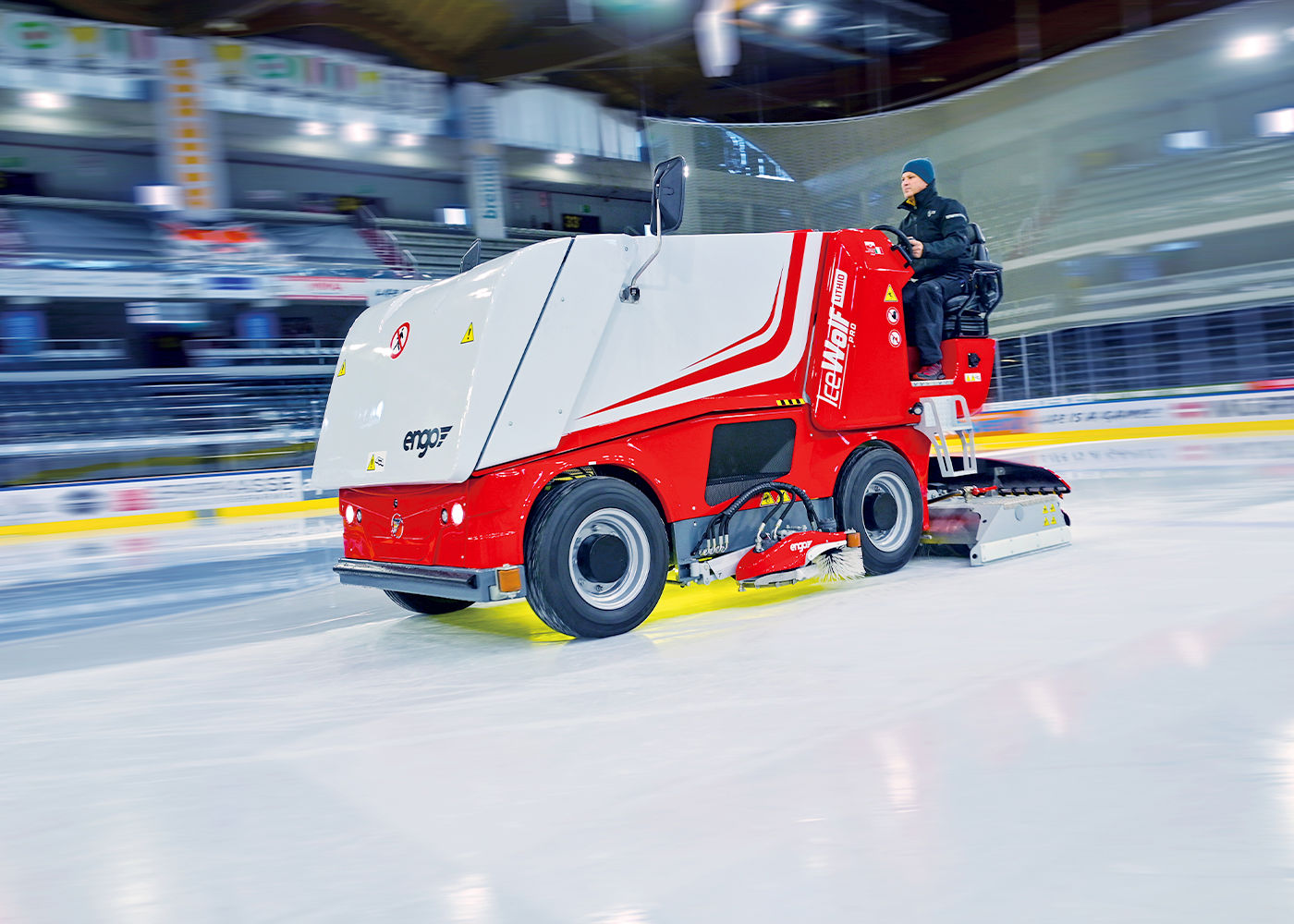

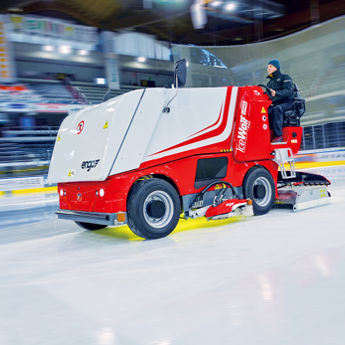

Ice Wolf Pro | LITHIO

FOR PROFESSIONALS

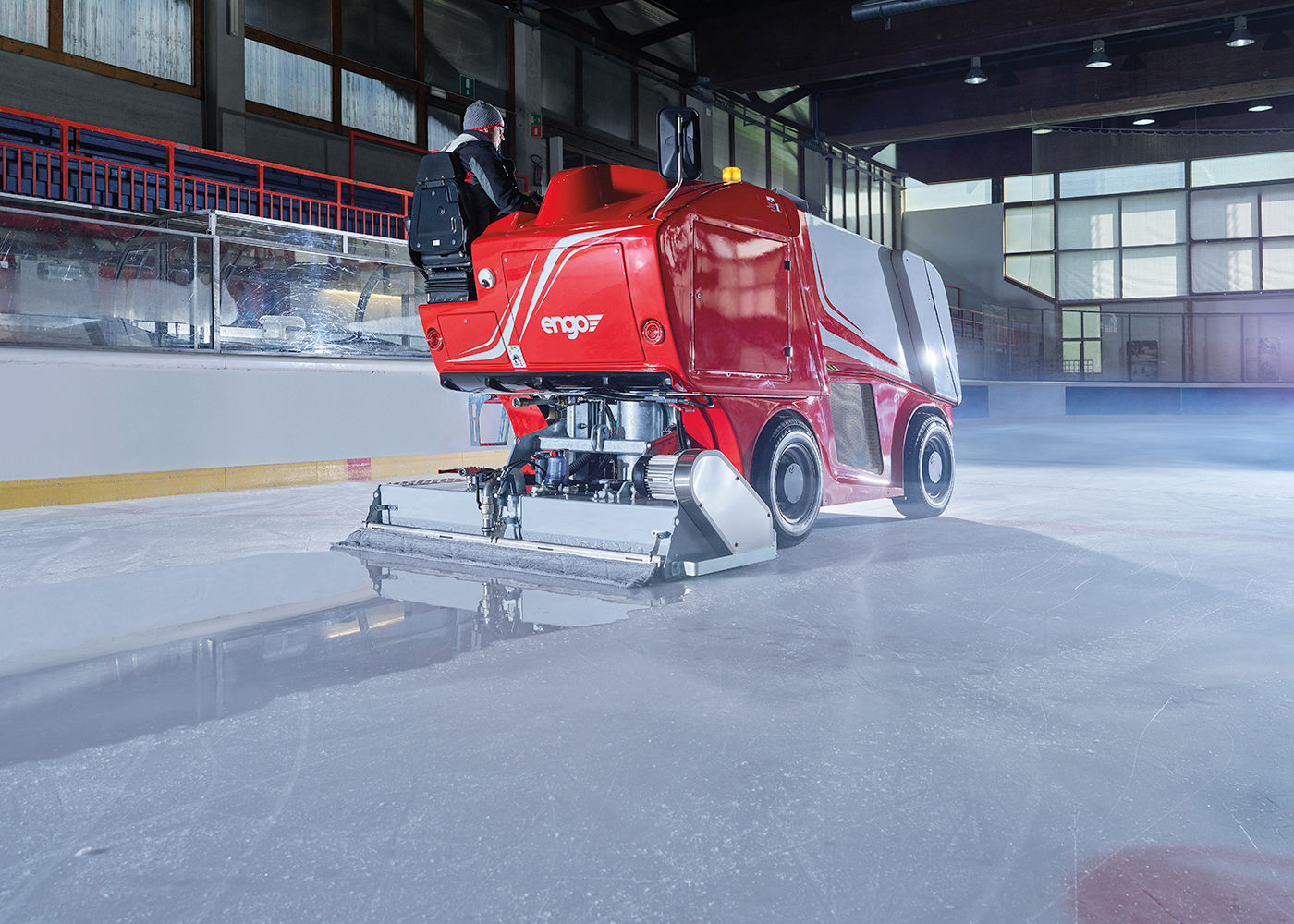

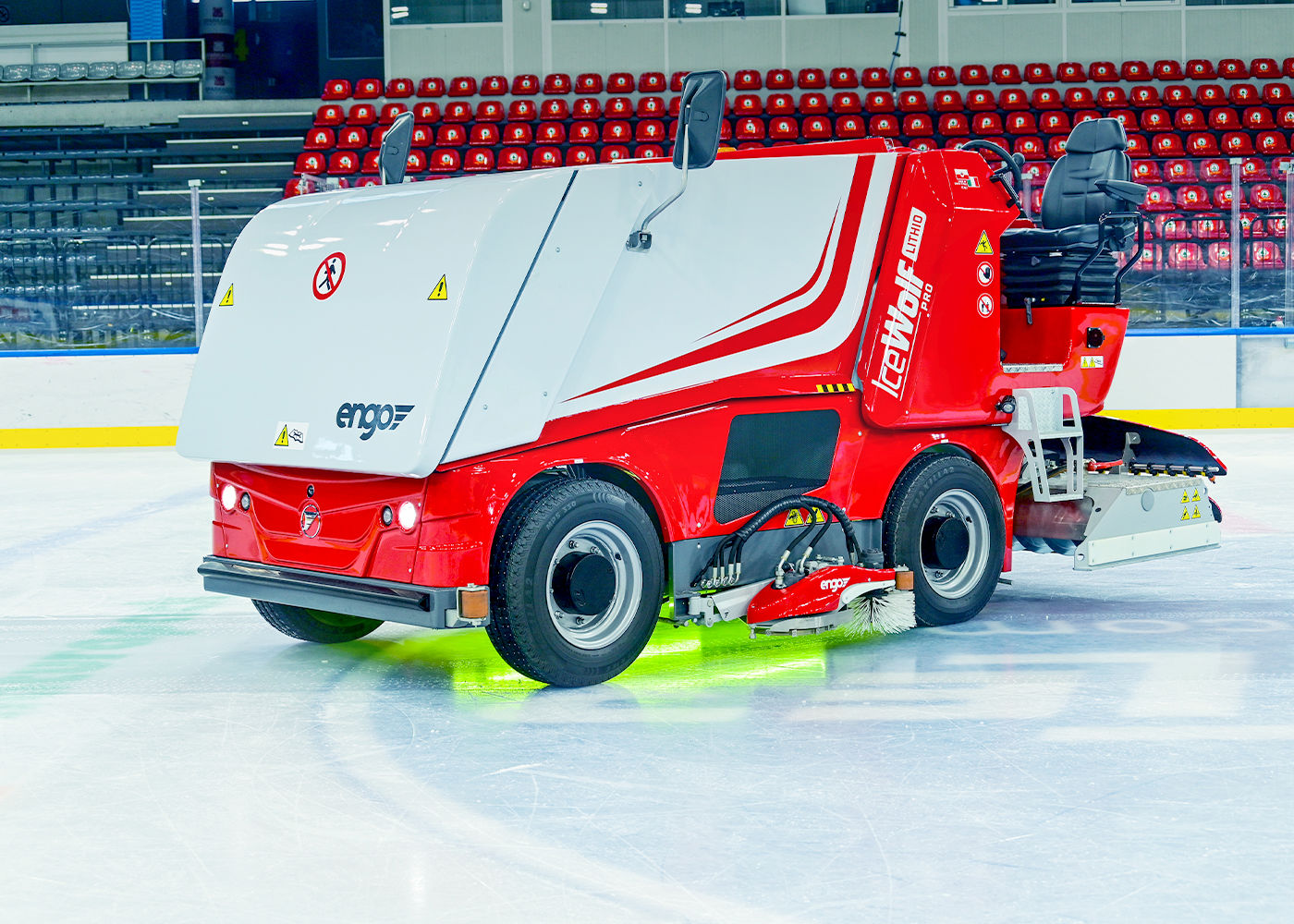

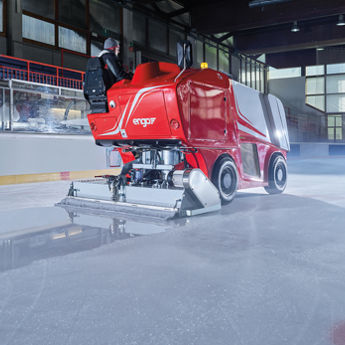

The IceWolf PRO combines performance, precision, reliability, functionality and comfort in an impressive overall package. As the top-of-the-range IceWolf model, it adds practical extras to the most popular ice resurfacing functions, focusing on performance and efficiency as well as comfort. The LITHIO edition with modular battery packs and state-of-the-art Lithio technology enables almost limitless availability thanks to fast charging between ice resurfacing operations. You also benefit from many advantages such as high performance, energy efficiency, compact design, flawless operation and low maintenance costs.
The model is ideal for ice surfaces up to 1,800 m². In addition to performance and efficiency, comfort plays the main role.
UNIVERSALLY CUSTOMISED / MODERN & EFFICIENT / FUNCTION WITHOUT COMPROMISE / CONVENIENT / JOYSTICK FOR FUNCTIONS / LITHIO VERSION

TECHNICAL DATA

The designer reserves the right to make technical changes.
Copyright by ENGO GmbH

Technical data

Technical data

Weight empty

5.350 kg

Weight full

6.350 kg

Wheels

225/75/R16

Speed

0-13km / h

Motor

6 asynchronous electric motors

Battery

80V 875Ah low-maintenance lead-acid battery

up to 1,800 m²

Ice field size

2.000 / 2.150 / 2.300 mm

Blade width

3,0 m³(komr. 3.6m³)

Snow tank

1.000 l

Water tank

Request offer

Technical data

Weight empty

3.600 kg

Weight full

4.600 kg

Wheels

225/75/R16

Speed

0-13 kph

Motor

6 asynchronous electric motors

Battery

80V 240Ah lithium battery

until 1.800 m²

Ice field size

2.000m

Blade width

3,0 m³ (compr. 3,6 m³)

Snow tank

1.000 l

Water tank

Request offer

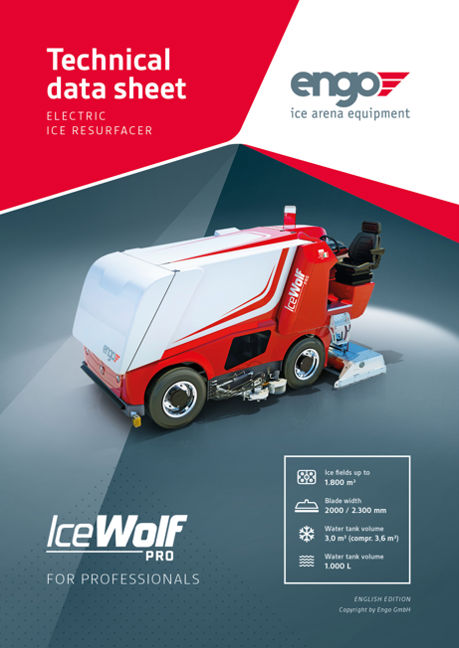

Technical documentation

Equipment

: - Electric drive: Emission-free, eco-friendly and cost-saving
- Strong, maintenance-free AC motors and low-maintenance battery
- Patented quick blade change and auger washout system
- Ergonomic driver ’s platform with joystick and 10.4-inch color touch screen display
- Ice boost snow breaker for augers while driving
- Fully automatic system starts for work functions
- Remote-control system Smart Connect for 1 year
- Different water tank capacities available (optional)
- Different blade-sizes available (optional)
- Solid Ice: High-end, state-of-the-art water spraying system (optional)
- Package of ice-, wheel- and tank washing system (optional)
- Hydraulic ice edger with electric height adjustment (optional)
: IceWolf PRO: LOW-MAINTENANCE BATTERY AND CHARGING DEVICES
- Low-maintenance battery from 80 V / 420 Ah up to 80 V / 875 Ah
- Charger 80 V 140 Ah for low-maintenance batteries
- FRONIUS Selectiva charger for low-maintenance / maintenance-free batteries
------------------------------------------------------------------------------------------------------
IceWolf PRO: MAINTENANCE-FREE BATTERIES AND CHARGERS
- Maintenance-free battery from 80 V / 460 Ah up to 80 V / 875 Ah
- FRONIUS Selectiva charger for low-maintenance / maintenance-free batteries
------------------------------------------------------------------------------------------------------
IceWolf PRO LITHIO: LITHIUM BATTERY AND CHARGERS

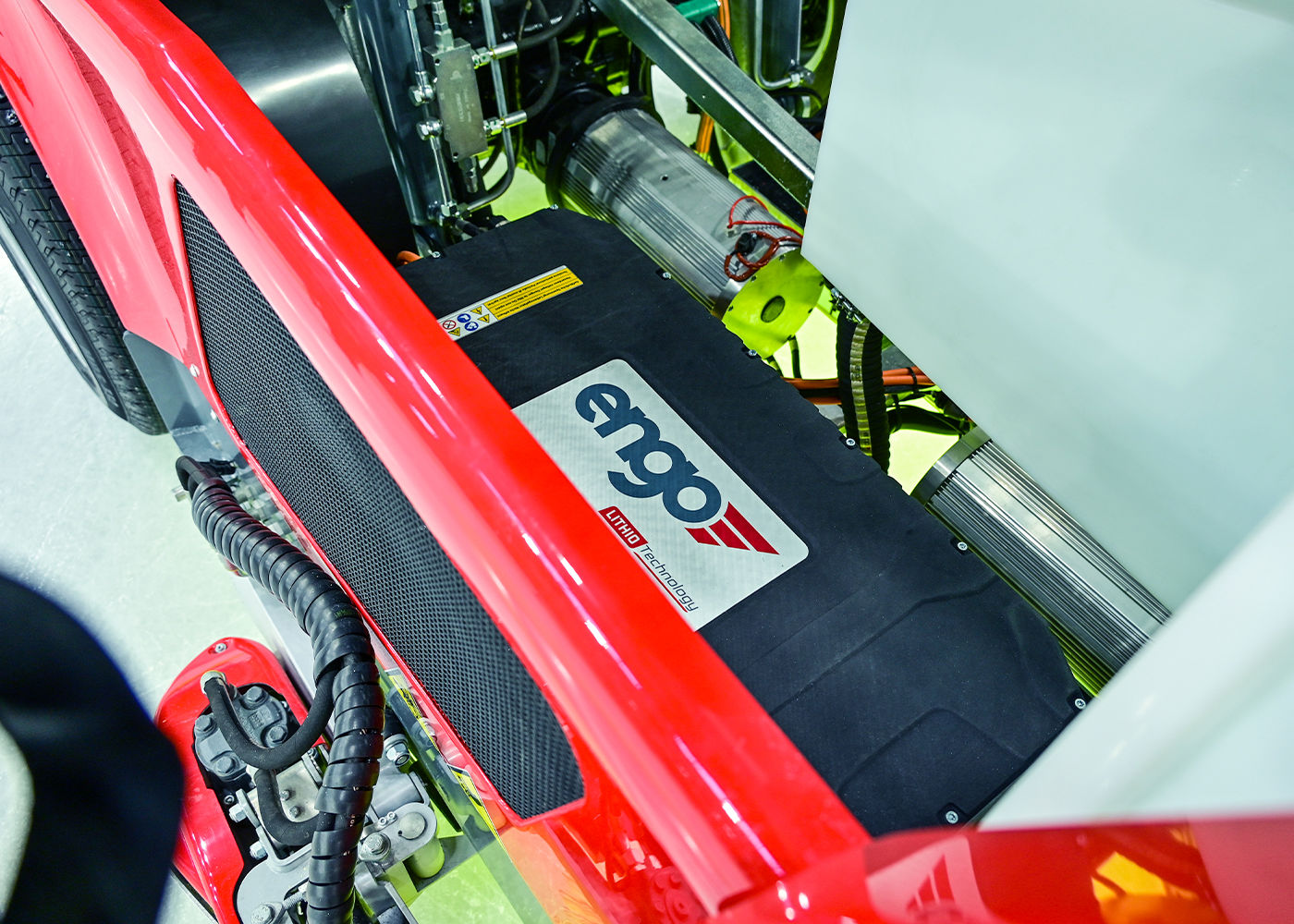

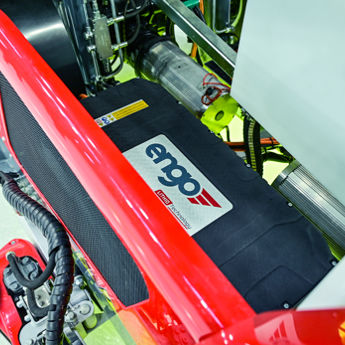

- Battery with LITHIO technology 80 V / 240 Ah
- Additional Lithium Power Pack of 120 Ah each up to max. 600 Ah
- Charger with AUTOMOTIVE charging plug
- Charger with various voltages and certifications
- Transport trolley for lithium charger
- Wall bracket for lithium charger
: SAFETY SYSTEMS
- Quick-blade change system, developed by ENGO in 1997
- Auger washout system, developed by ENGO in 2001
- Safety switch for snow tank and conditioner
- EMERGENCY/OFF switch
- Acoustic signal when reversing
- Acoustic signal when operating snow tank
- Acoustic signal when reversing auger
- Servo-assisted oil bath brakes on all 4 wheels
- Handbrake (negative brake)
- Tow hook
------------------------------------------------------------------------------------------------------
ELECTRICAL SYSTEMS AND DRIVE
- DRIVE: direct electromechanical all-wheel axle drive with studded tyres
- HYDRAULICS: direct electromechanical hydraulic pump drive
- MOTORS / AUGER MOTORS: Maintenance-free electric asynchronous motors
------------------------------------------------------------------------------------------------------

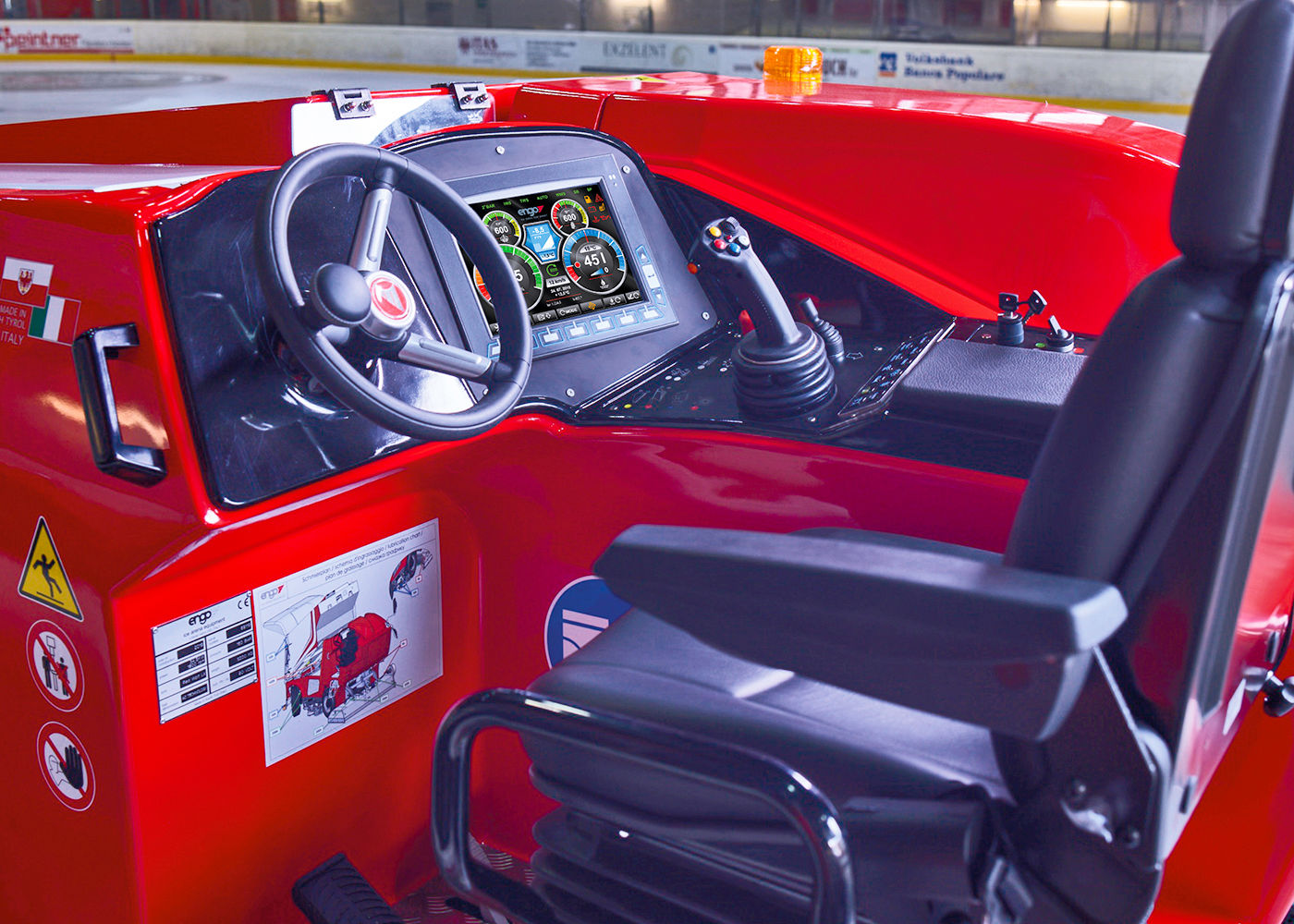

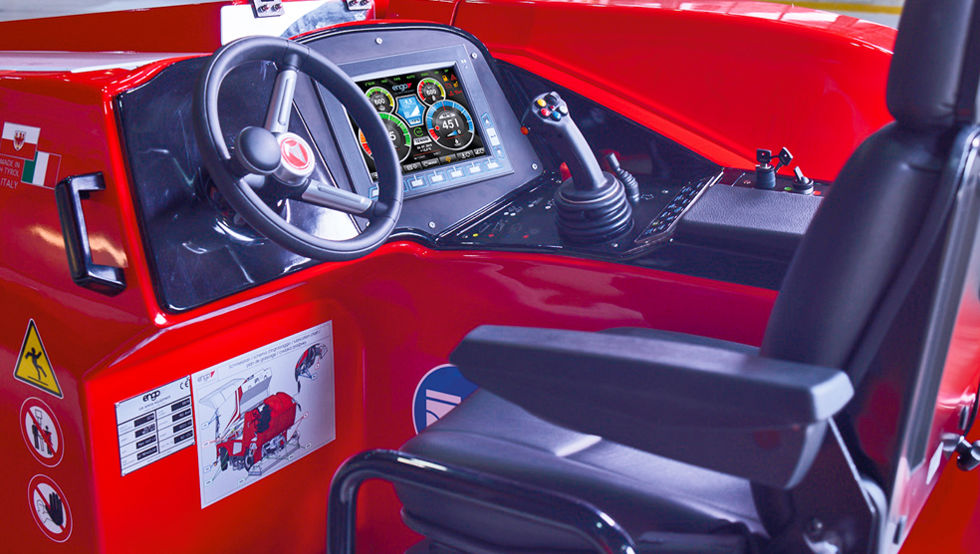

COCKPIT ENVIRONMENT
- Access aids in accordance with CE directives
- Suspended, adjustable driver ‘s seat with armrest
- Foot pedals for acceleration and brake
- Steering wheel with power assistance
- Direction lever D/N/R
- 10.4-inch colour display with touch screen
- Easy-to-operate joystick for work functions
- CAN-BUS keypad for secondary functions
- USB interface
- Lockable storage compartment
- Side mirrors (heated as an option)
------------------------------------------------------------------------------------------------------
CONTROL SYSTEMS
- LITHIO version: SmartConnect remote maintenance system (WLAN) for 1 year
- FULL AUTO system starts of all work functions
- Automatic maintenance display
- CAN-BUS system
- Electronic presetting of 2 cutting depths
- Ice boost system for augers
- Digital battery level indicator
- Digital display of the hydraulically adjustable cutting depth
- Digital water level indicator
- Sensor for water temperature
------------------------------------------------------------------------------------------------------
LIGHTING SYSTEMS

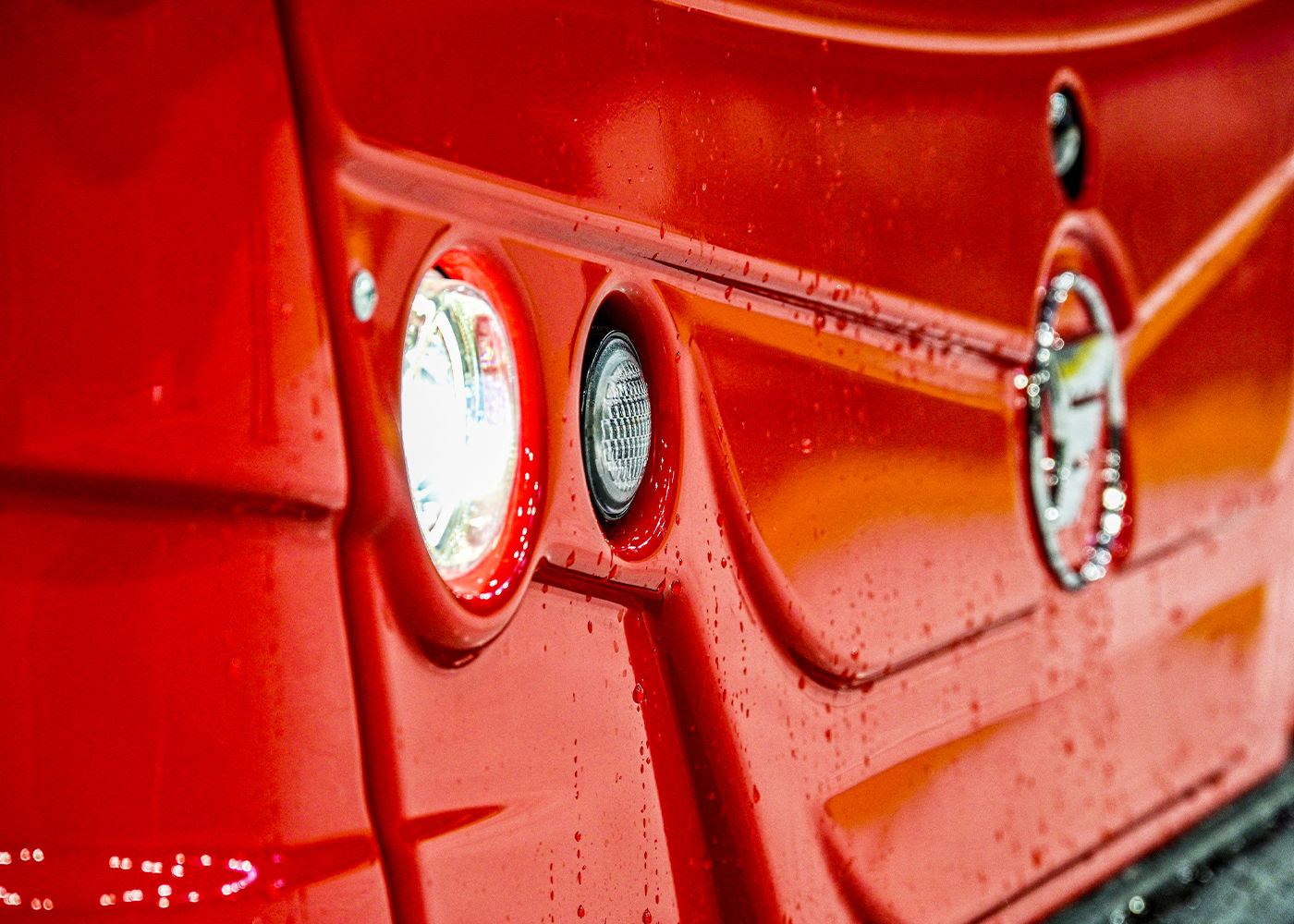

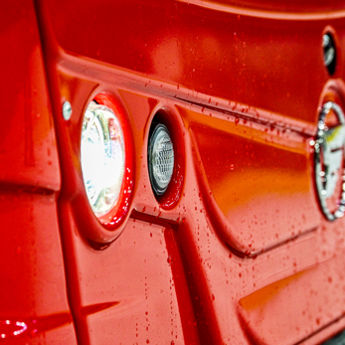

- 4 LED front headlights and 2 rear lights
- LED daytime running lights
- LED snow tank headlights
- LED rotating beacon
------------------------------------------------------------------------------------------------------
HYDRAULIC SYSTEMS
- Hydraulic cylinders for snow tank and conditioner
- Hydraulic blade depth adjustment

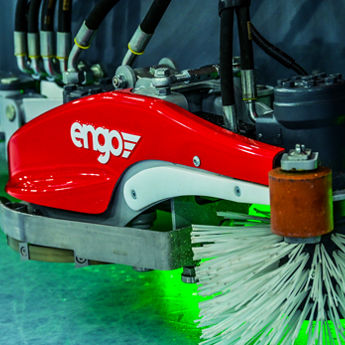

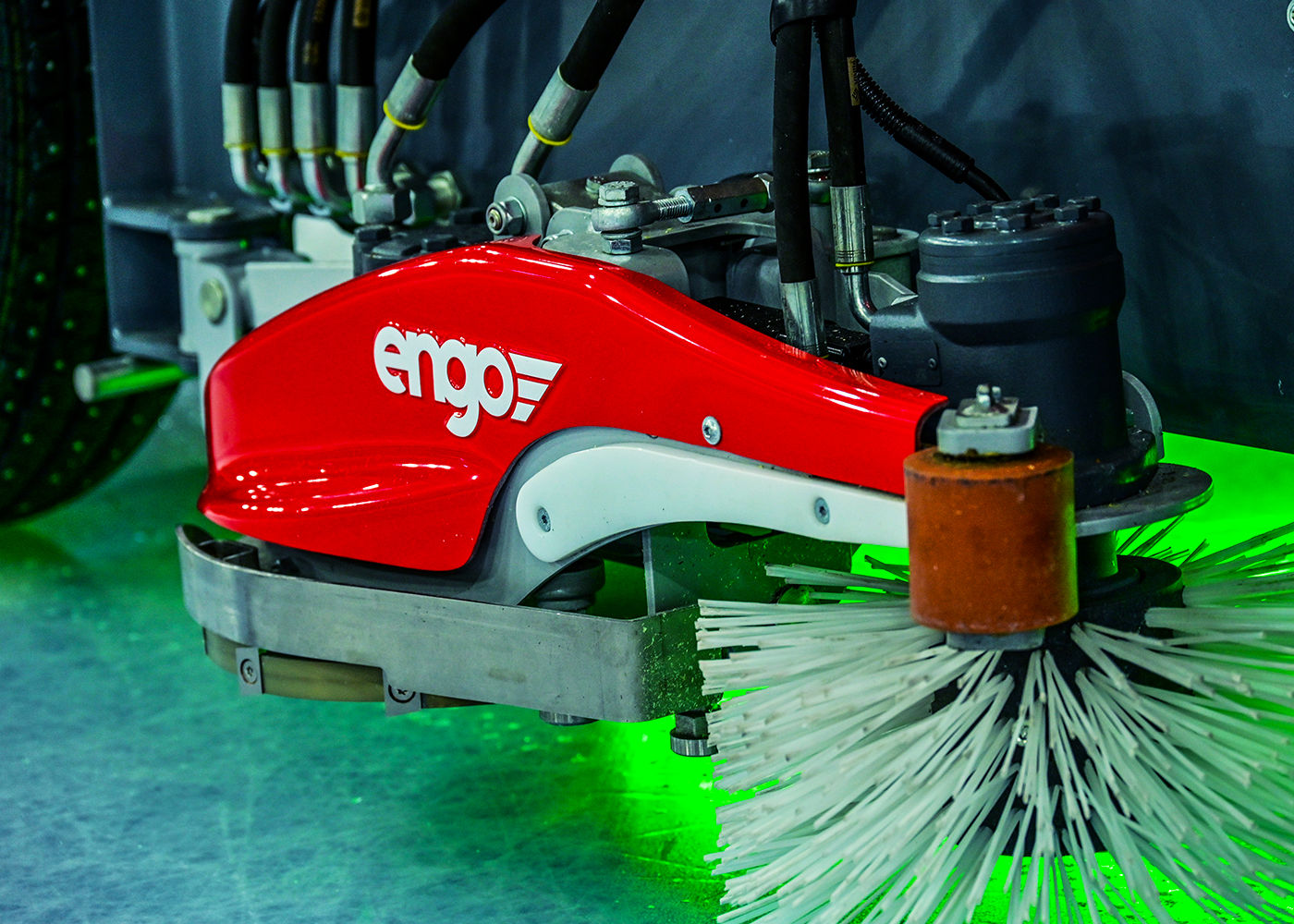

- Hydraulically driven side brush
- Hydraulic emergency hand pump
------------------------------------------------------------------------------------------------------
WATER SYSTEM
- Water filling system with automatic filling stop
- Manually adjustable water drain
- Automatic water level shut-off valve
- Automatic, speed-dependent water management
- 2 wiping cloths
------------------------------------------------------------------------------------------------------
CONFIGURATION AND FILLING QUANTITY
- Steel snow tank with a capacity of 3.0 m³ (compressed 3.6 m³)
- Water tank in PE - HD with a capacity of 1,000 litres
- Powder-coated, hot-dip galvanized conditioner with width of 2,000 mm
------------------------------------------------------------------------------------------------------
ACCESSORIES INCLUDED
- Special tools for service and blade replacement
- 2 planer knives made of high-alloy steel with 45 - 60 operating hours
- 2 wiping cloths
- Various sets of spare parts
- Manual, including spare parts catalogue with USB stick (digital)
: COCKPIT ENVIRONMENT
- Height-adjustable steering wheel
- Heated cab with color glazing, DAB radio and stereo system
- Driver ‘s seat with air suspension and seat heating
- Windscreen
- Heated side mirrors front, right and left
- Front and/or rear-view camera
- Side camera on the right-hand side
------------------------------------------------------------------------------------------------------
CONTROL AND MEASUREMENT SYSTEMS
- Extension of the SmartConnect remote maintenance system for 1.5 or 10 years
- Ice temperature sensor
- Ambient temperature sensor
- Humidity sensor
- Parking sensors
- Laser levelling system
- Integrated laser beam as driving aid
------------------------------------------------------------------------------------------------------
LIGHTING SYSTEMS
- LED side indicators front and rear
- LED strobe headlights
- LED work lights for side brushes/ tillers
- Underbody lighting (RGB colours)
------------------------------------------------------------------------------------------------------
WORKING SYSTEMS
- Hydraulic drum cutter with electric height adjustment
- Powder-coated, stainless conditioner with a cutting width of 2,150 mm or 2,300 mm
- Scoring harrow 2,150 mm or 2,300 mm with quick-release fasteners
- Wiper: Electrically operated towel lifting system
------------------------------------------------------------------------------------------------------
WATER SYSTEMS
- Snow and water tank connection
- Water fountain / only in combination with tank connection
- Package of IWS - WWS - TWS / high-pressure system

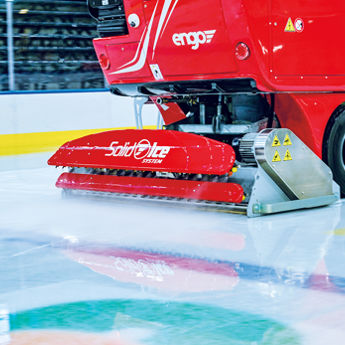

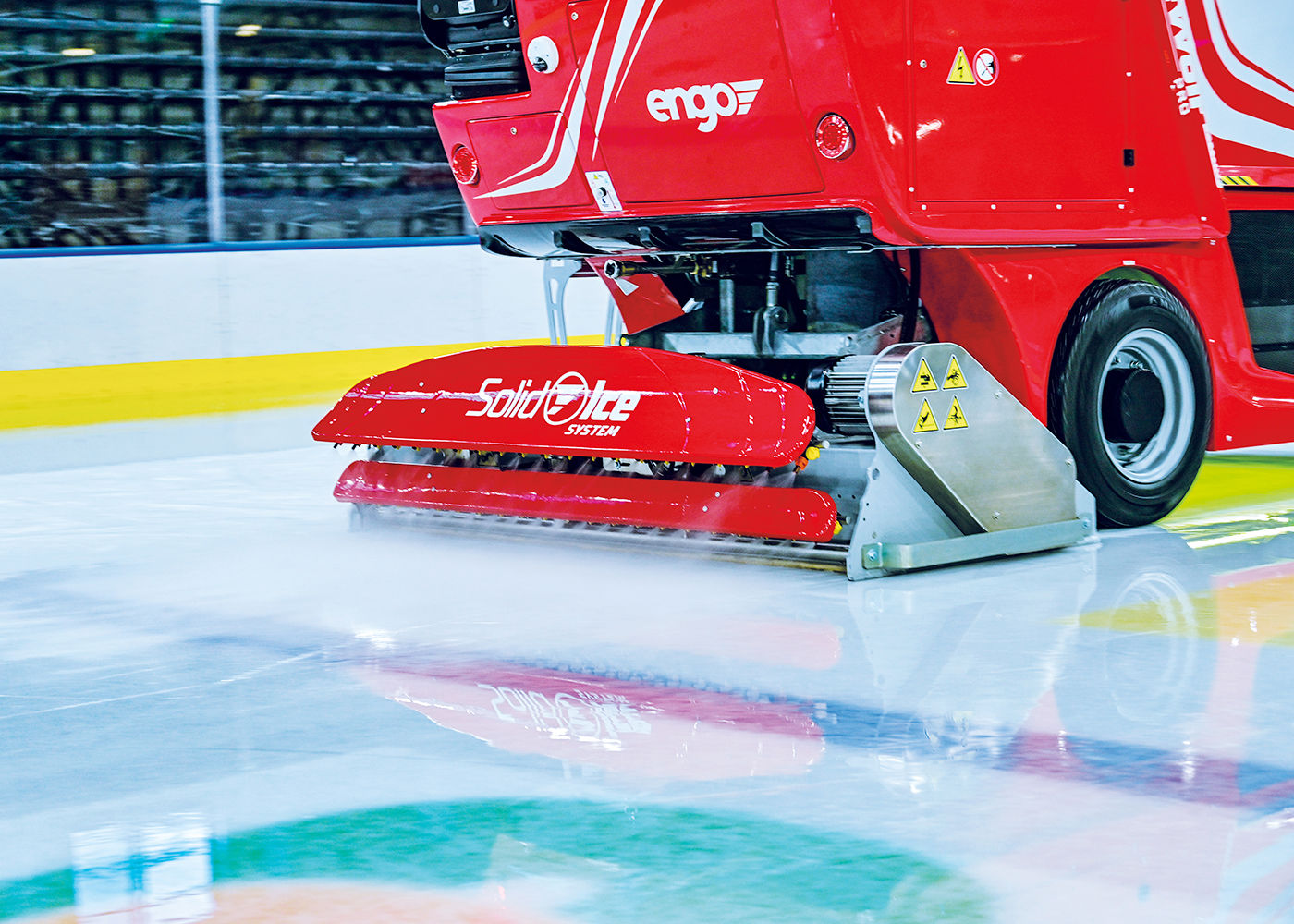

- Solid Ice spraying system
------------------------------------------------------------------------------------------------------
CONFIGURATION AND FILLING QUANTITIES
- Stainless steel water tank with a capacity of 1,100 litres
- Stainless steel MODULE water tank in combination with snow tank, capacity of 1,200 litres
- MODUL stainless steel snow tank with a volume of 3.6 m³
------------------------------------------------------------------------------------------------------
VEHICLE SYSTEM
- Studded spare wheel with rim
- Chrome rims
------------------------------------------------------------------------------------------------------
ACCESSORIES
- Toolbox with quality tools
- Jack

Impressions

CUSTOMISED AND INNOVATIVE

Each model of our machines can be customised and configured according to individual requirements. In addition to the basic equipment, numerous functional and helpful optional extras can be added, making each machine a unique, customised product.

Optionals Personalisation
