THE BIG ONE

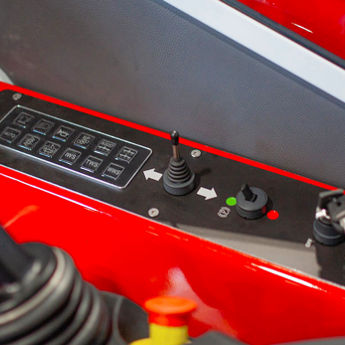

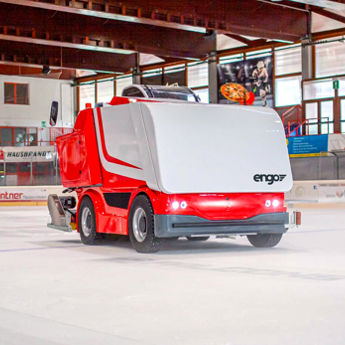

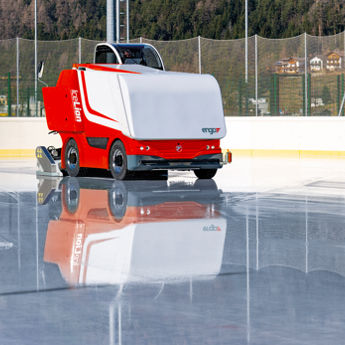

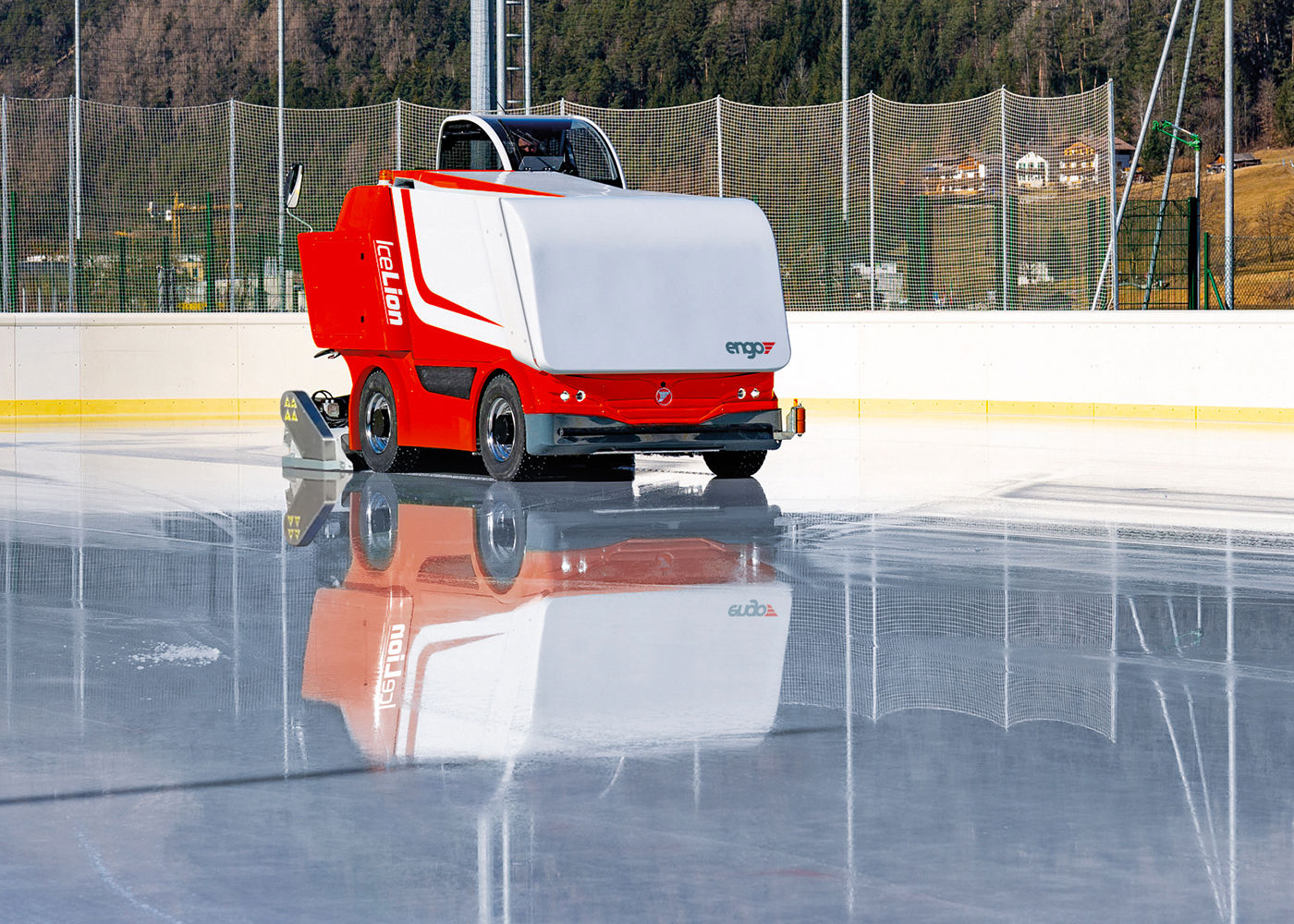

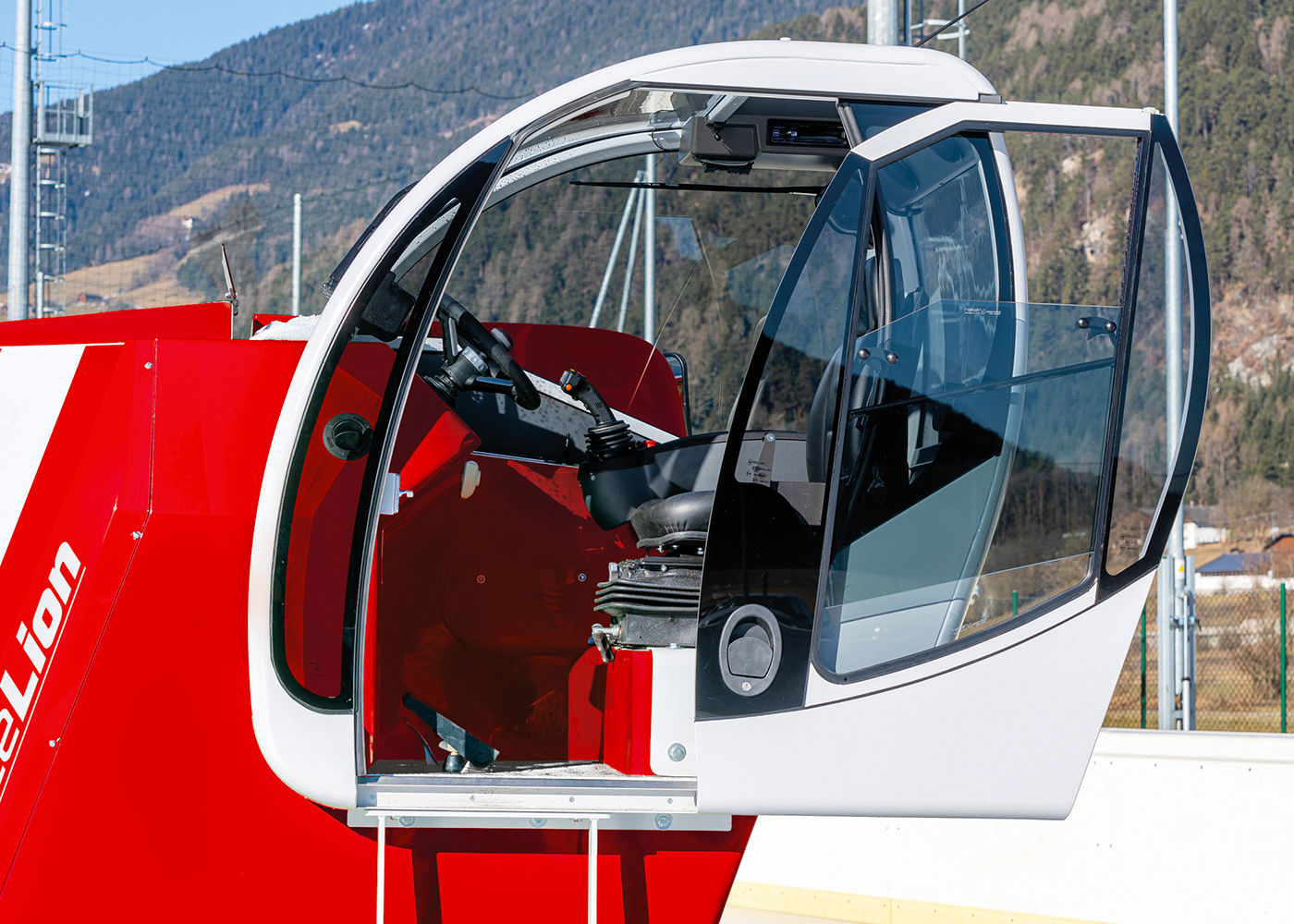

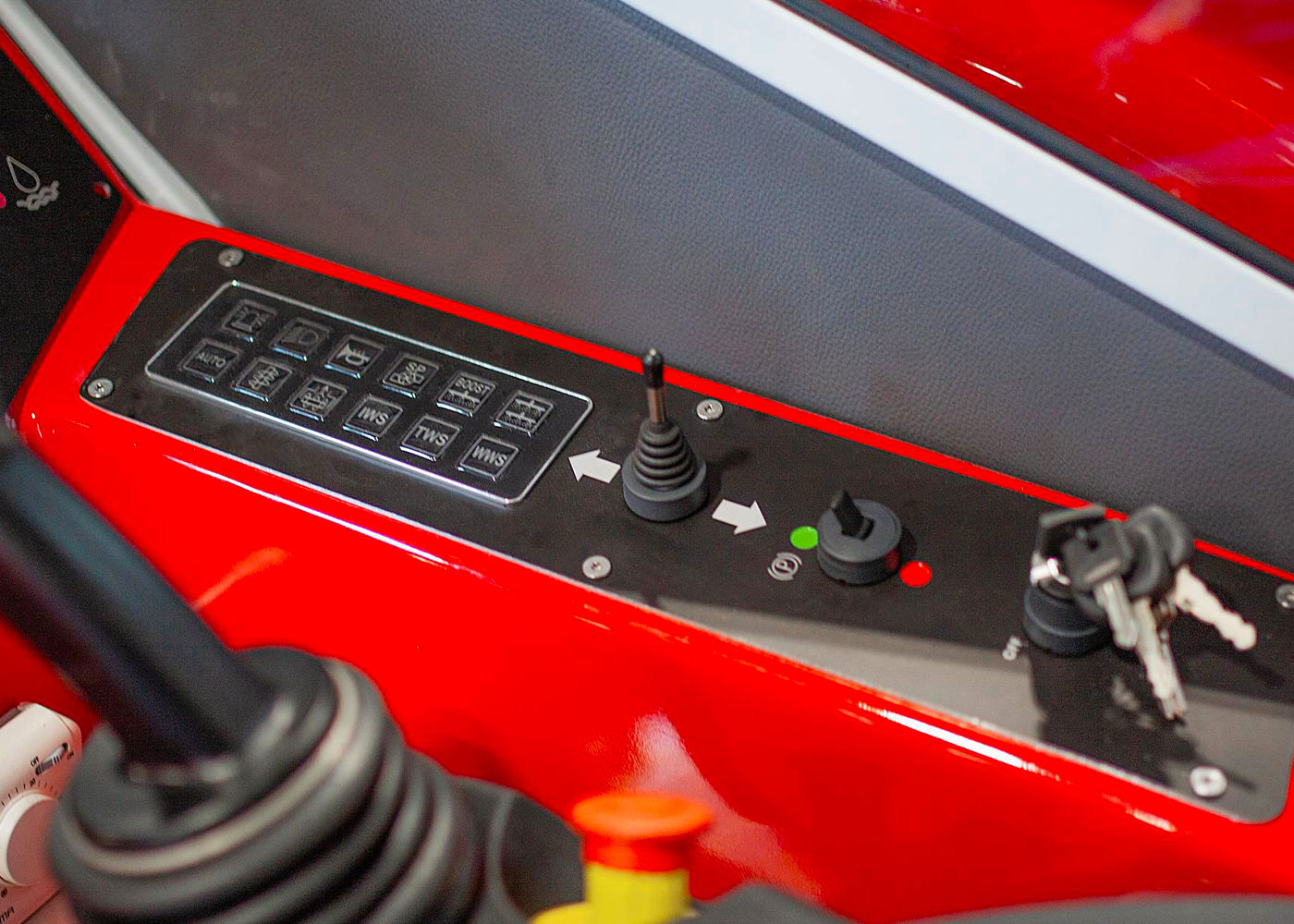

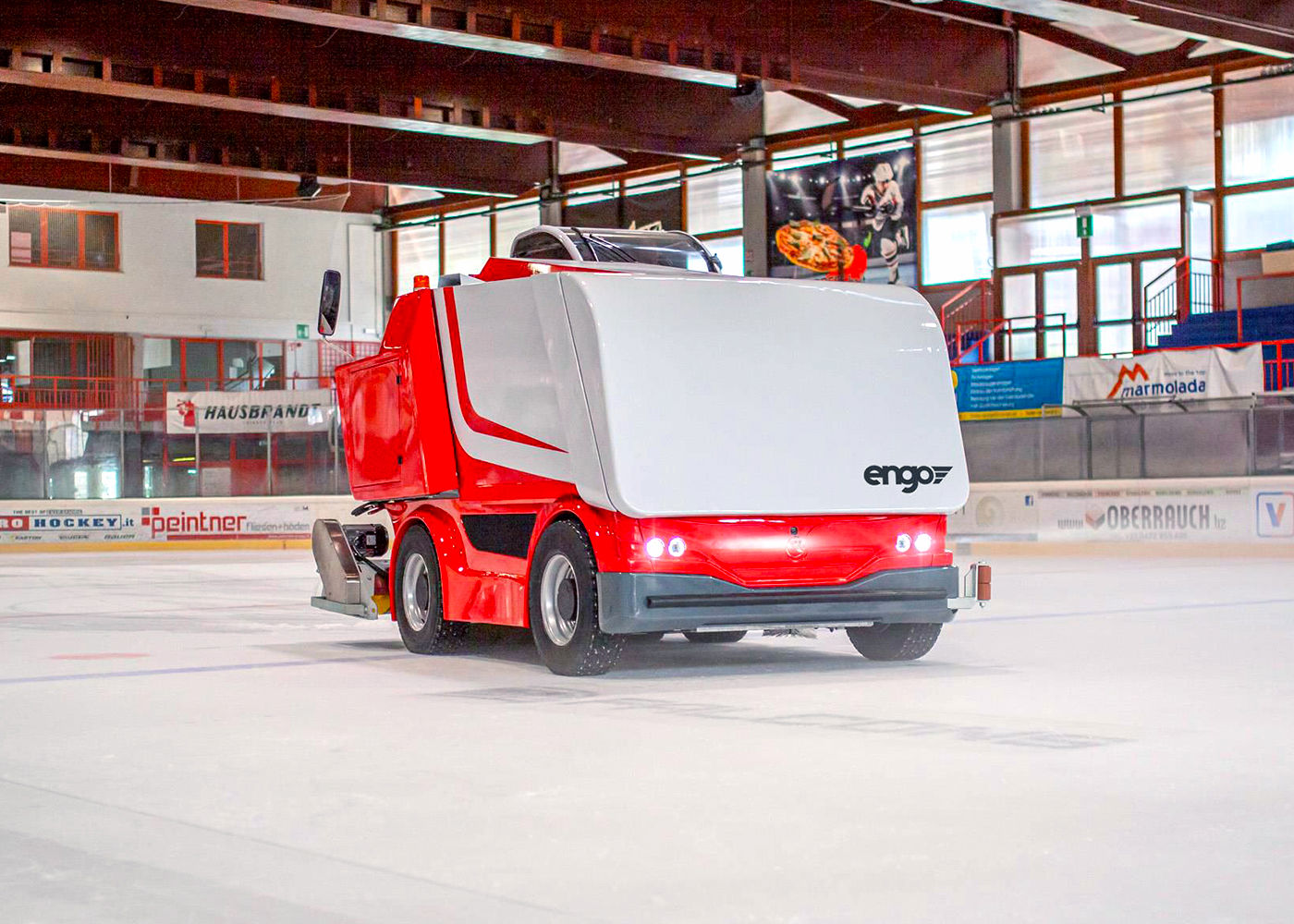

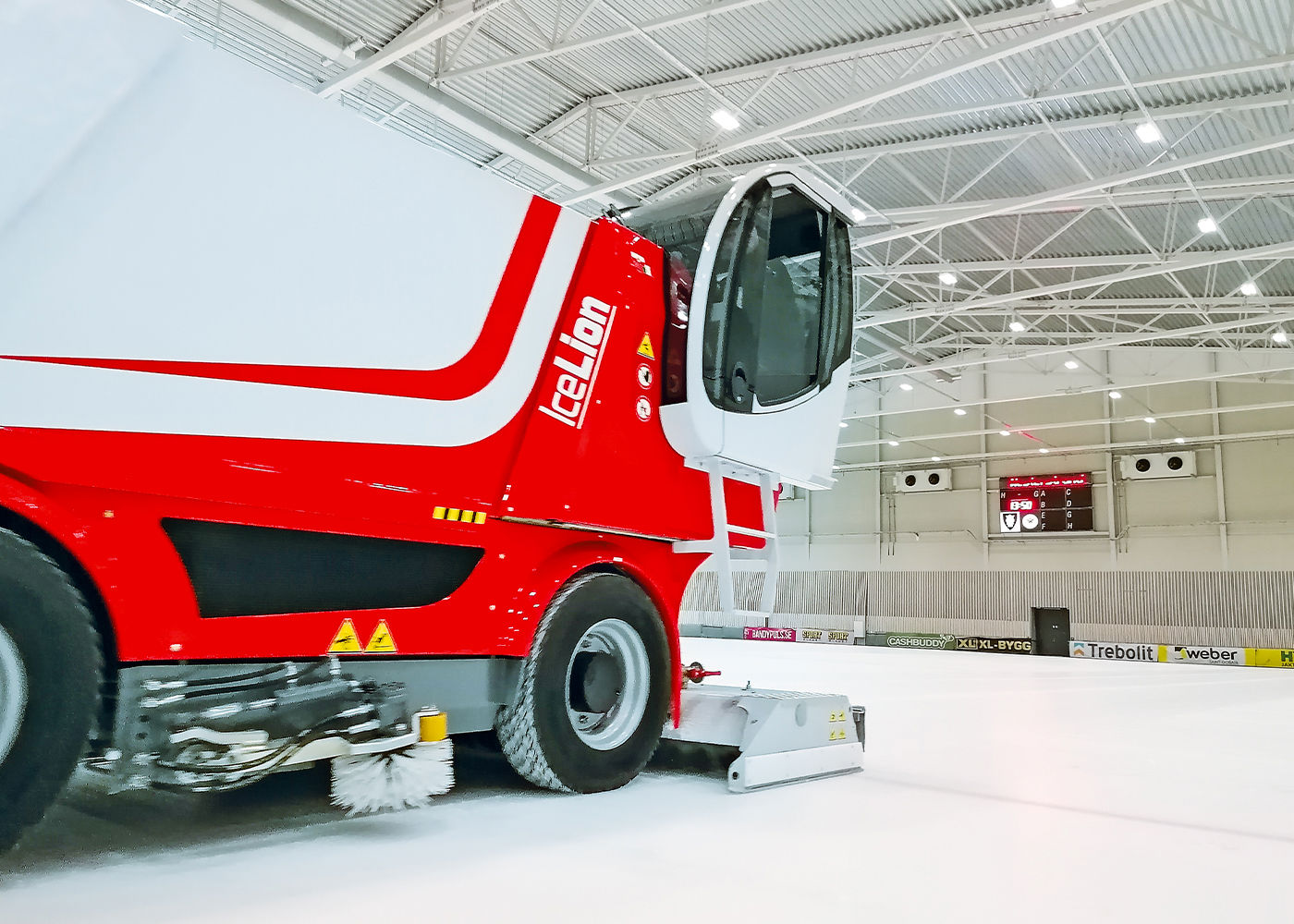

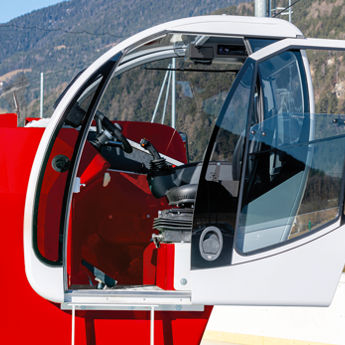

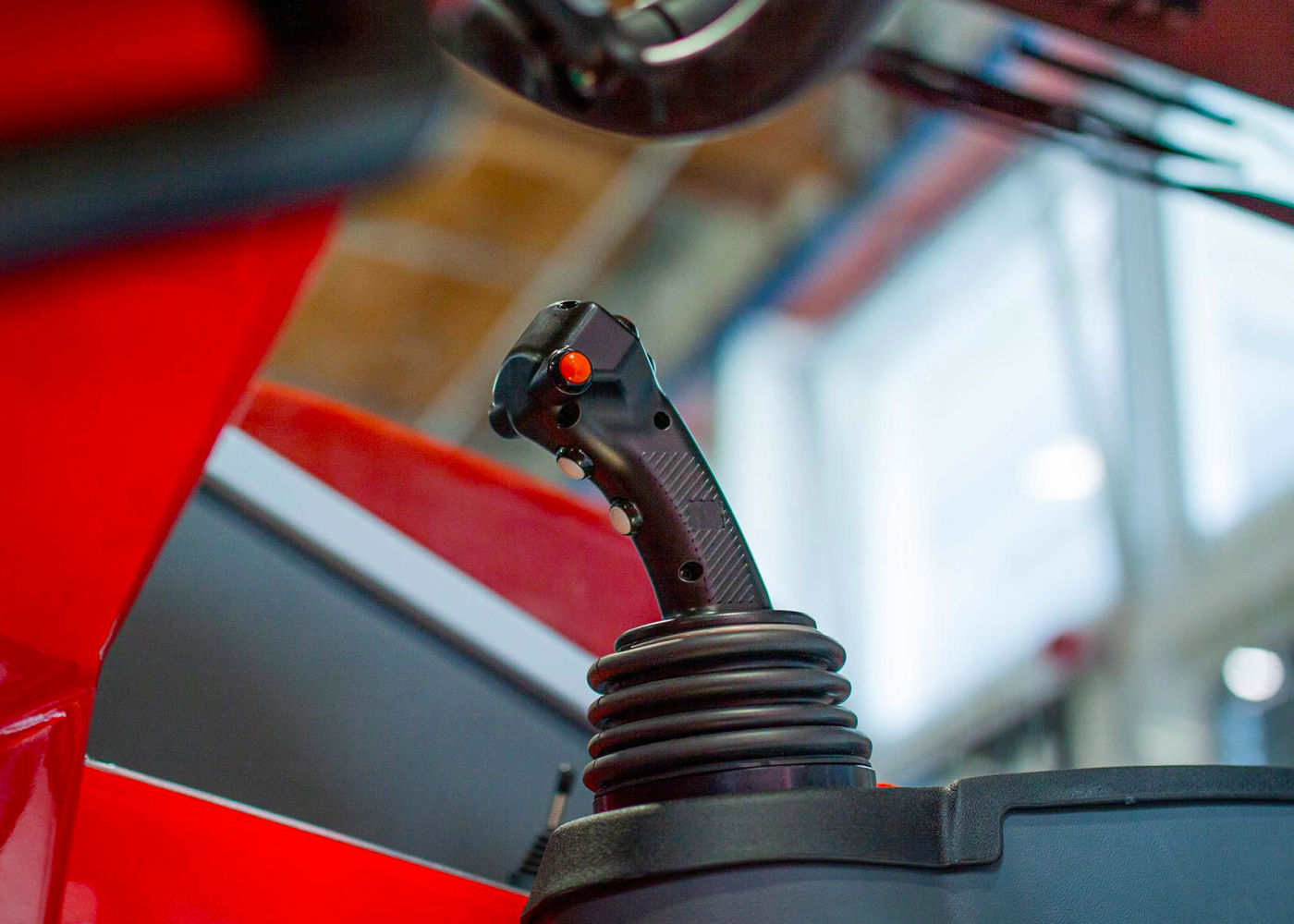

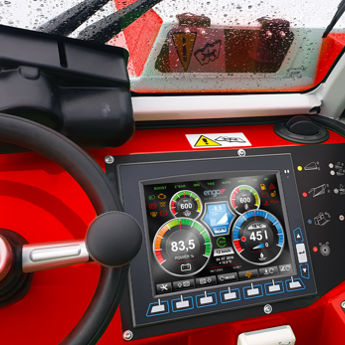

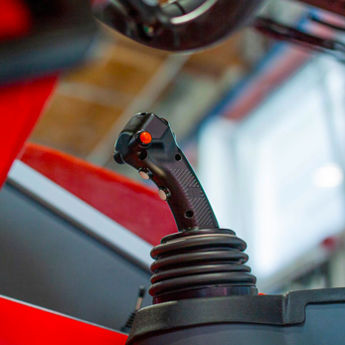

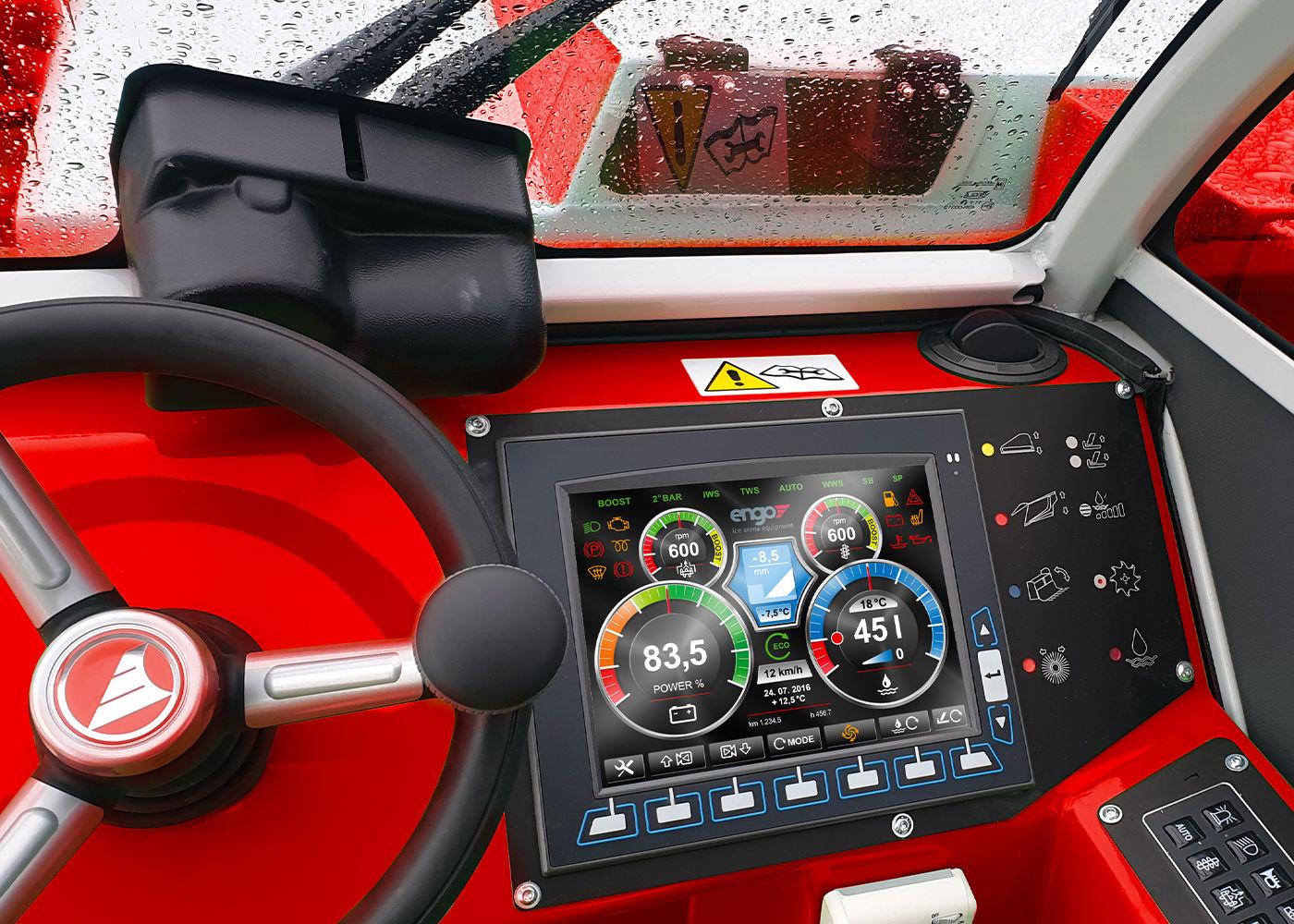

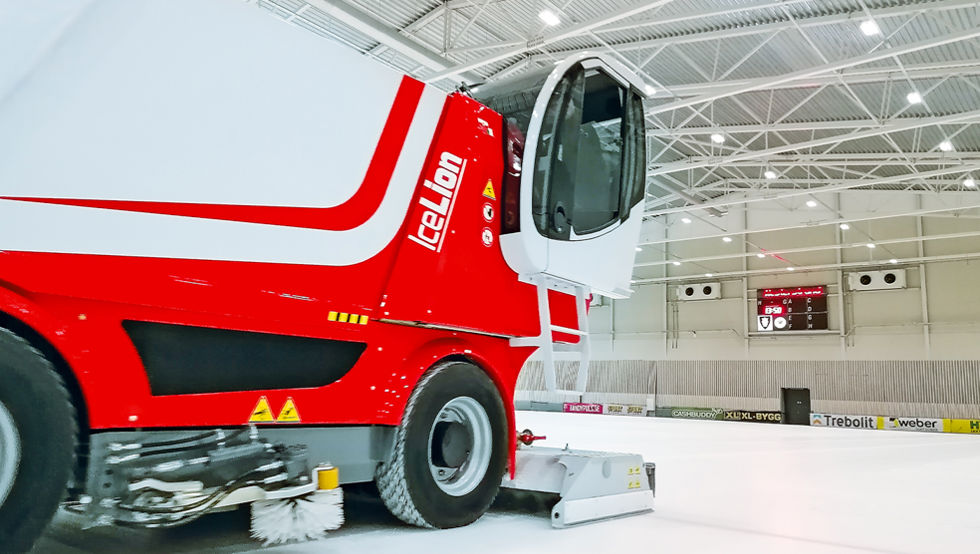

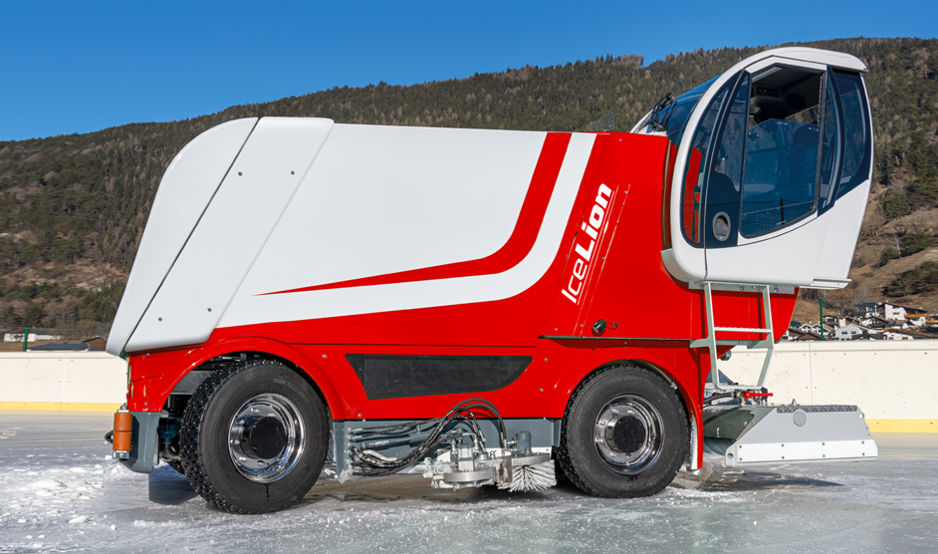

The IceLion ice resurfacing machine is the ideal choice for large ice rinks. With its high capacity and optional cabin, it is unbeatable for outdoor rinks and large halls. The IceLion conquers even the largest ice surfaces thanks to its powerful batteries and a cutting width of 2,500 mm. Despite its size, it remains maneuverable and fast. The ergonomic cockpit with joystick and touchscreen display is designed for maximum driving comfort. The LITHIO edition enables almost limitless availability thanks to fast charging between ice resurfacing operations. The modular battery packs with high energy density drastically reduce the overall weight of the machine thanks to their compact and lightweight design. The completely maintenance-free battery and the state-of-the-art charging gun feature the highest level of technology.

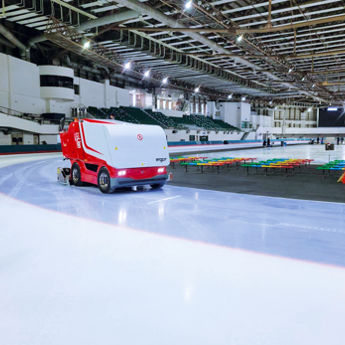

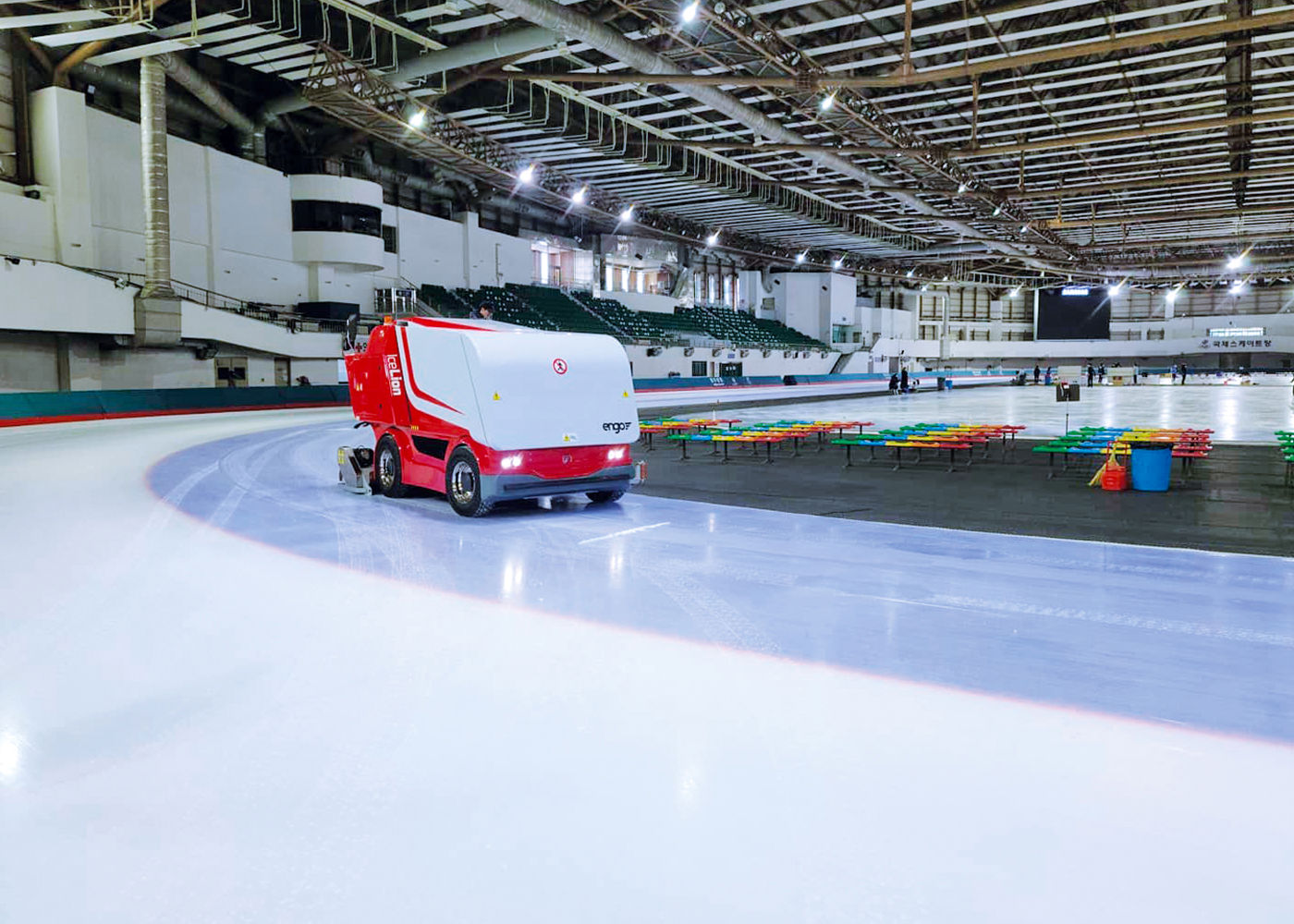

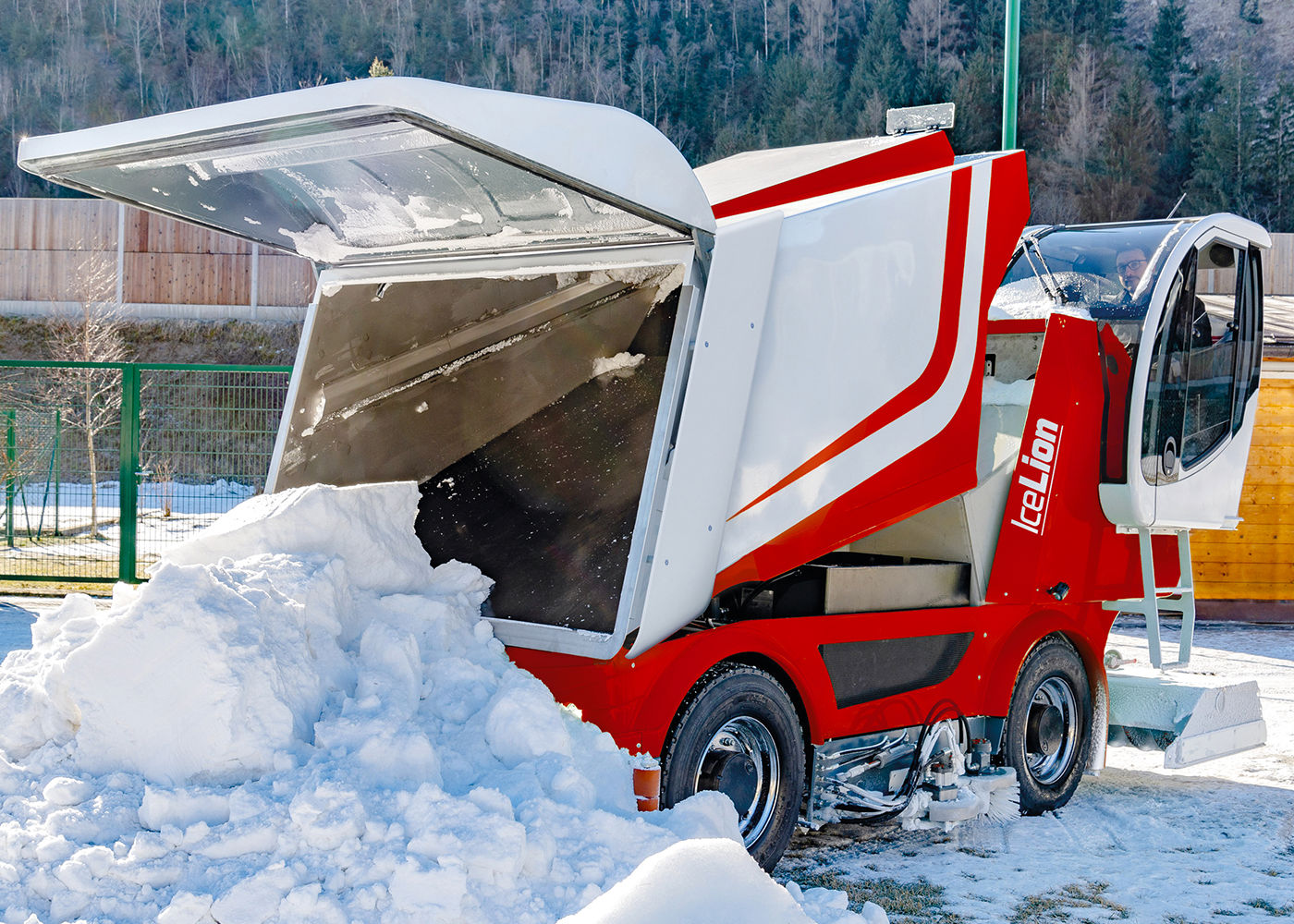

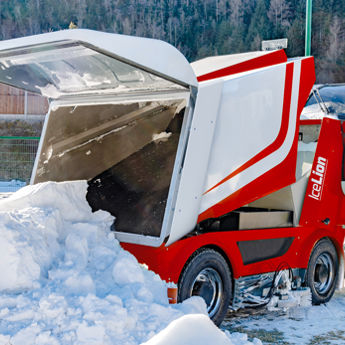

With its extraordinary capacity for snow and water, the IceLion is ideal for ice surfaces of up to 7,000 m².In addition to its impressive size, this model fulfils the highest requirements in terms of comfort and technology.
HIGHEST CAPACITY / UNIVERSALLY ADAPTED / MODERN & EFFICIENT / FUNCTION WITHOUT COMPROMISE / COMFORTABLE / HIGHEST TECHNOLOGY / JOYSTICK FOR FUNCTIONS / LITHIO VERSION
Ice Lion | LITHIO
TECHNICAL DATA
The designer reserves the right to make technical changes.
Copyright by ENGO GmbH
Technical data
engo-ice-lion-logoengo-icelion-grafik-02
Technical data
IceLion
Weight empty
7.200 kg
Weight full
9.000 kg
Wheels
245/75/R17,5
Speed
0-13 kph
Motor
6 asynchronous electric motors
Battery
80V 875Ah low-maintenance (incl. battery charger)
until 7.000 m²
Ice field size
2.500 mm
Blade width
5 m³ (compr. 5,8 m³)
Snow tank
1.800 l
Water tank
Request offer
Technical data
IceLion Lithio
Weight empty
5.600 kg
Weight full
7.400 kg
Wheels
245/75/R17,5
Speed
0-13 kph
Motor
6 asynchronous electric motors
Battery
80V 480 lithium battery
until 7.000 m²
Ice field size
2.500 mm
Blade width
5 m³ (compr. 5,8 m³)
Snow tank
1.800 l
Water tank
Request offer

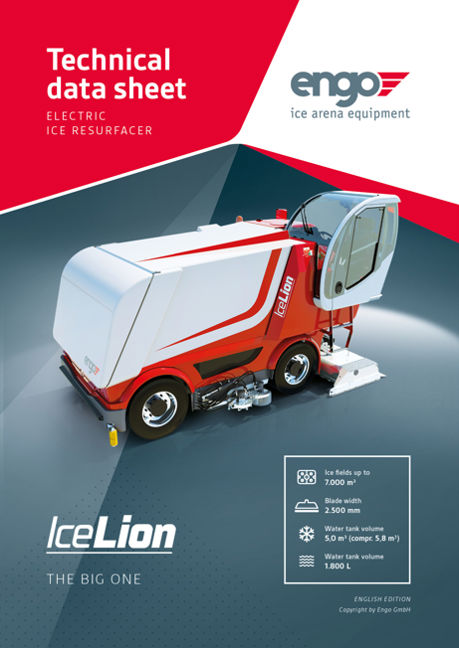

Technical documentation
IceLion
IceLion Lithio
Equipment
CUSTOMISED AND INNOVATIVE
Each model of our machines can be customised and configured according to individual requirements. In addition to the basic equipment, numerous functional and helpful optional extras can be added, making each machine a unique, customised product.
