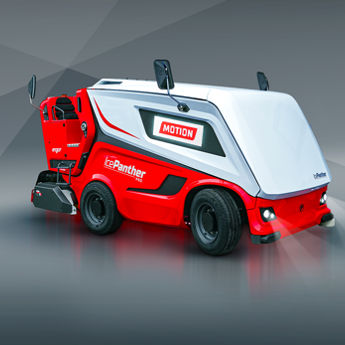

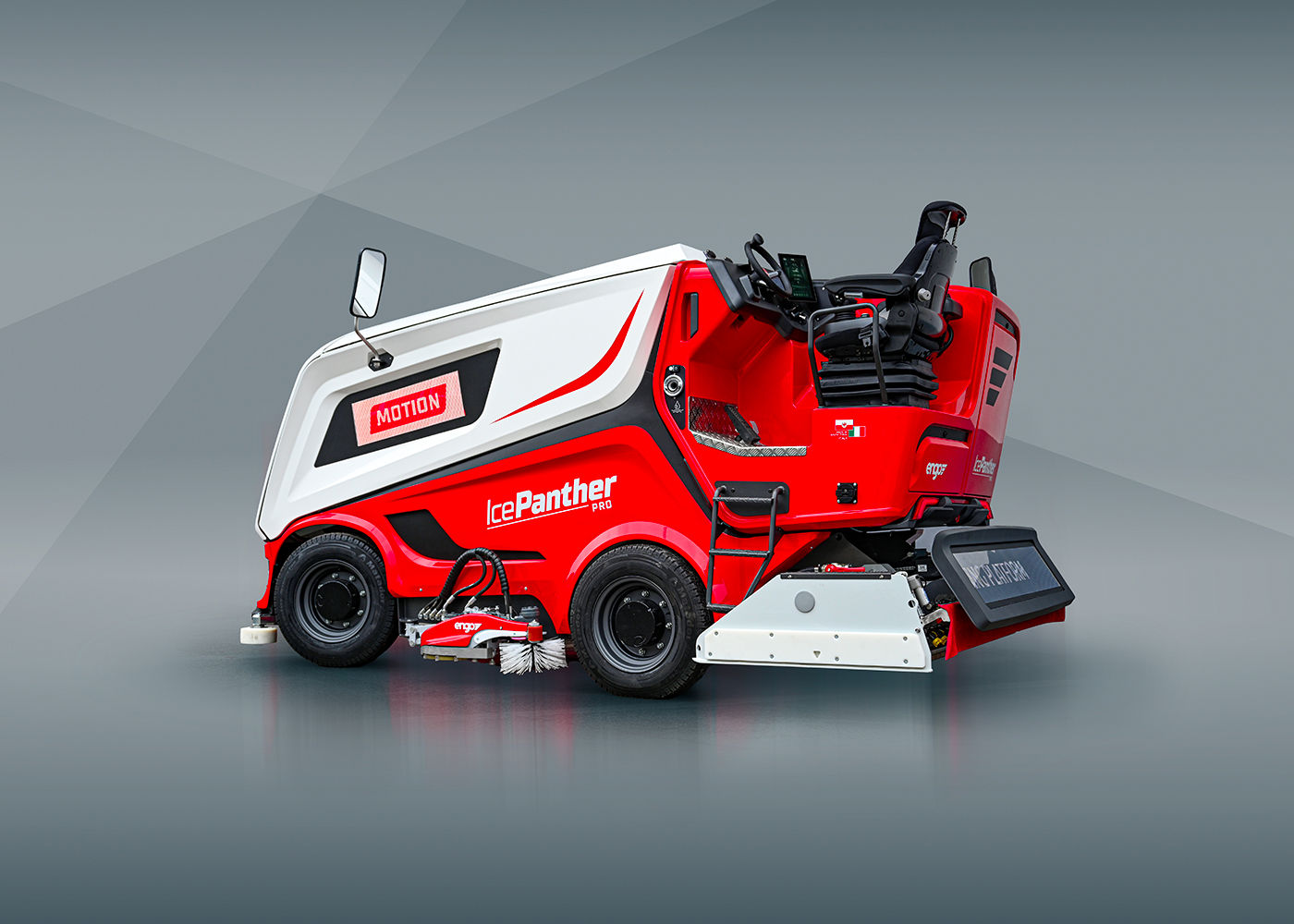

Ice Panther | LITHIO

THE NEXT GENERATION

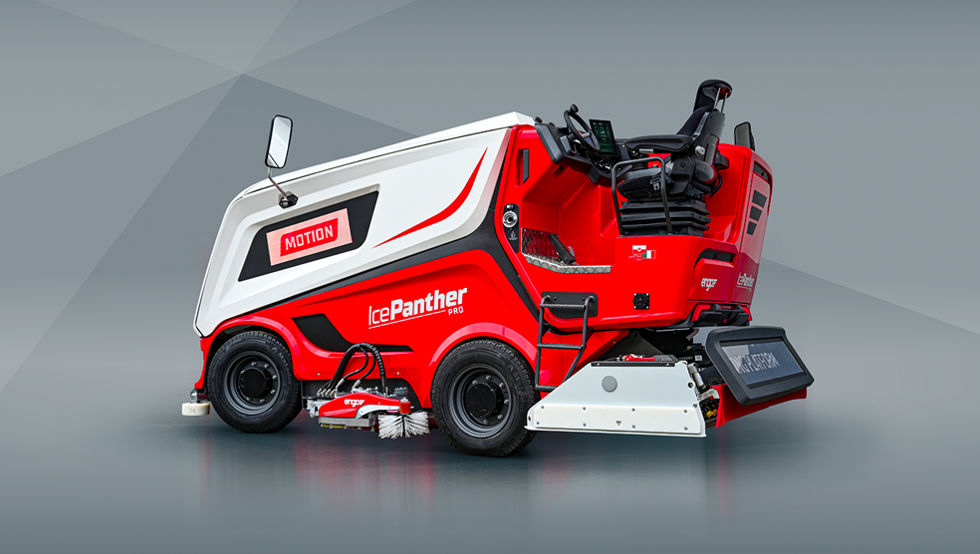

For over 45 years, Engo has been a pioneer in the development and production of ice resurfacing machines. Throughout this lengthy period, we have consistently enhanced and refined the performance and user-friendliness of our machines. The latest addition, the Engo IcePanther, seamlessly integrates into our existing range of Engo ice resurfacing machines. With this innovative new development, our goal is to merge the latest technological advancements in ice processing with supreme comfort and user-friendliness. This modern, next-generation model ushers in an entirely new era in terms of design, performance, precision, and sustainability. The new IcePanther boasts numerous innovative features, including LED advertising capabilities, ice thickness measurement, advanced lithium technology, a passenger area, and much more.

A NEW ERA BEGINS! AVAILABLE STARTING FROM THE 2024/25 SEASON.

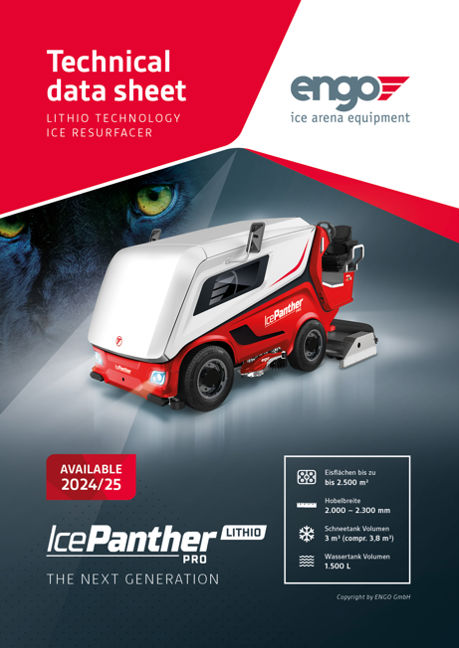

TECHNICAL DATA

The designer reserves the right to make technical changes.
Copyright by ENGO GmbH

Technical data

Technical data

Weight empty

3.900 kg

Weight full

5.200 kg

Wheels

245 / 75 / R17,5

Speed

0-15 km/h

Motor

Asynchronous electric motors

Battery

80 V / 320 Ah

2.500 m²

Ice field size

2.000 bis 2.300 mm

Blade width

3,0 m³

Snow tank

max. 1.500 L

Water tank

Request offer

Technical documentation

Equipment

: - Completely new and groundbreaking design
- Electric drive: Emission-free, environmentally friendly, and cost-effective
- Powerful, maintenance-free asynchronous motors and lithium technology battery

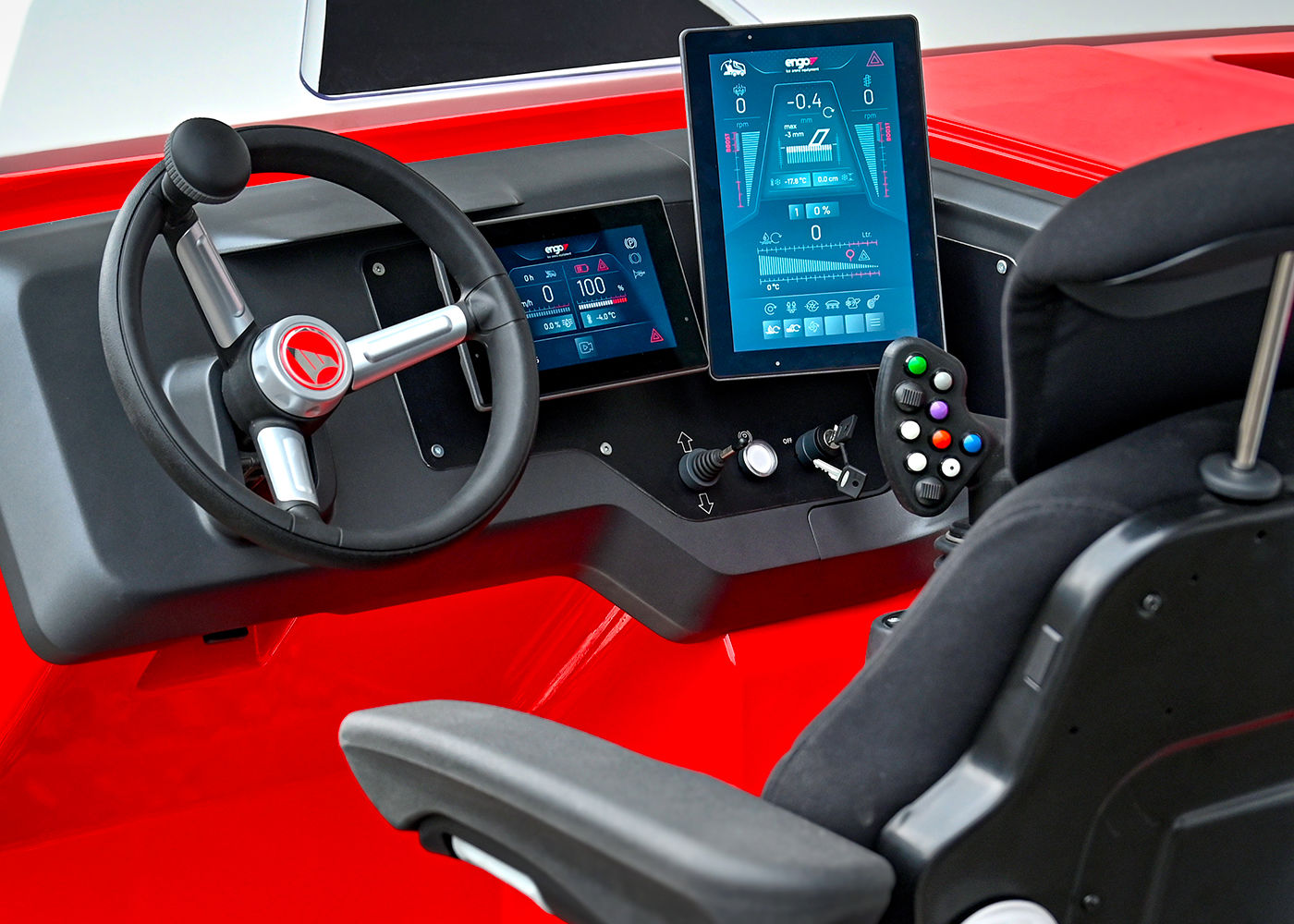

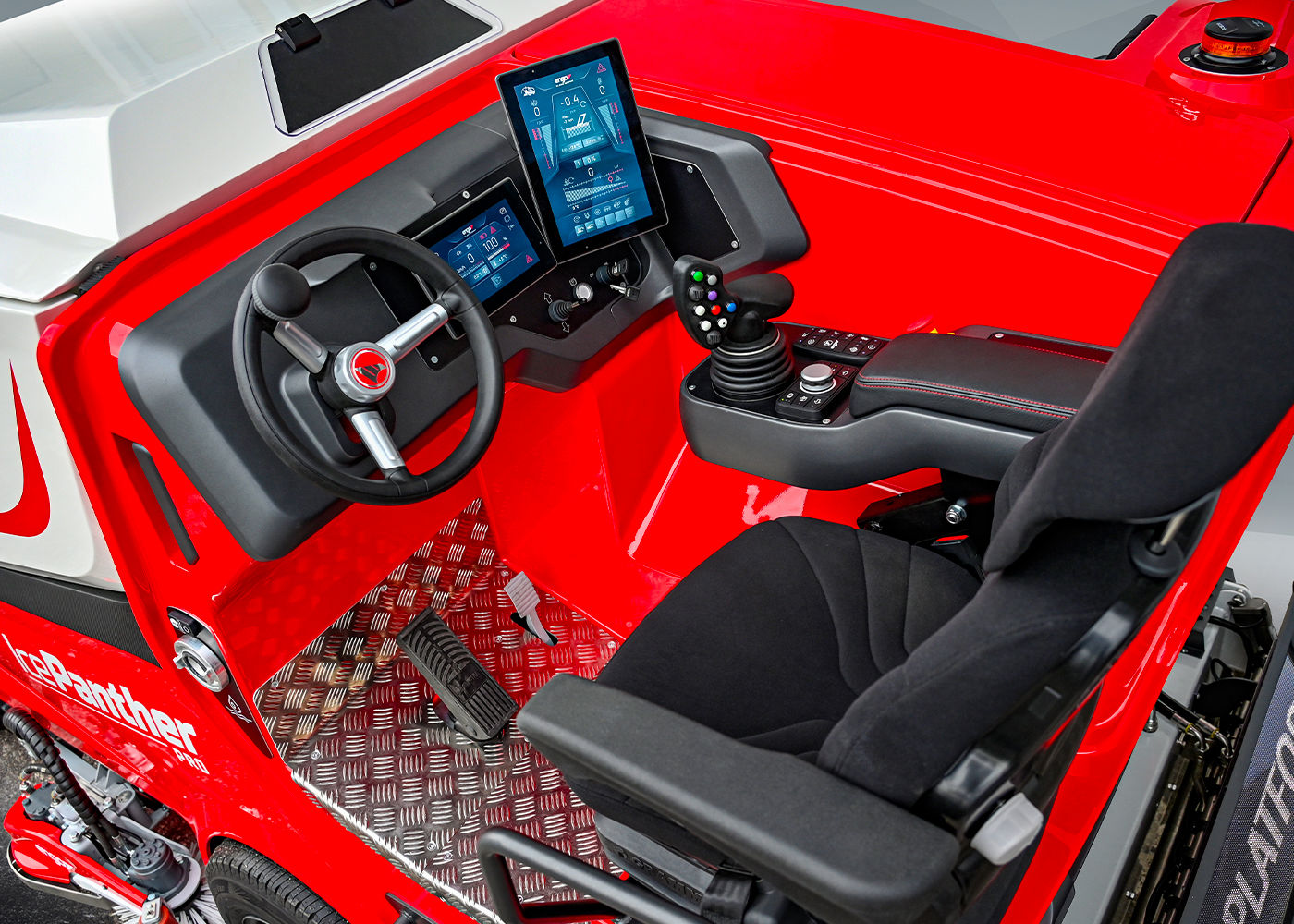

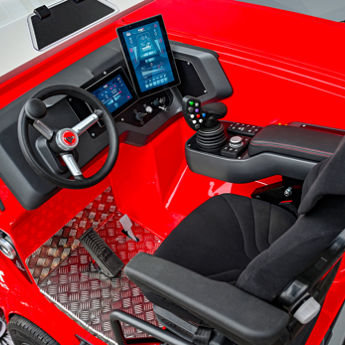

- Ergonomically redesigned driver‘s stand with adjustable steering column
- Sprung and ergonomically adjustable driver‘s seat with armrest - Screens with digital displays

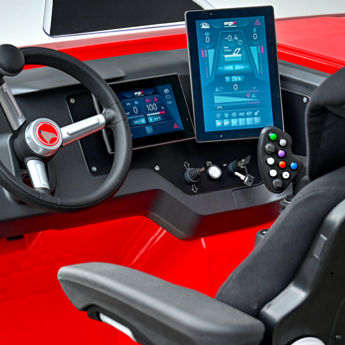

- Control via touchscreen and new intuitive joystick
- Passenger area
- Full auto system start of work functions
- Remote maintenance system „SmartConnect“ for 1 year
- Patented blade quick-change system and auger washing system
- Ice Boost snow breaker for augers
- 10.4“ screen (optional)
- Various sensors such as ice thickness measurement (optional)
- Compatible with various sled widths (optional)
- Water tank available in various sizes (optional)

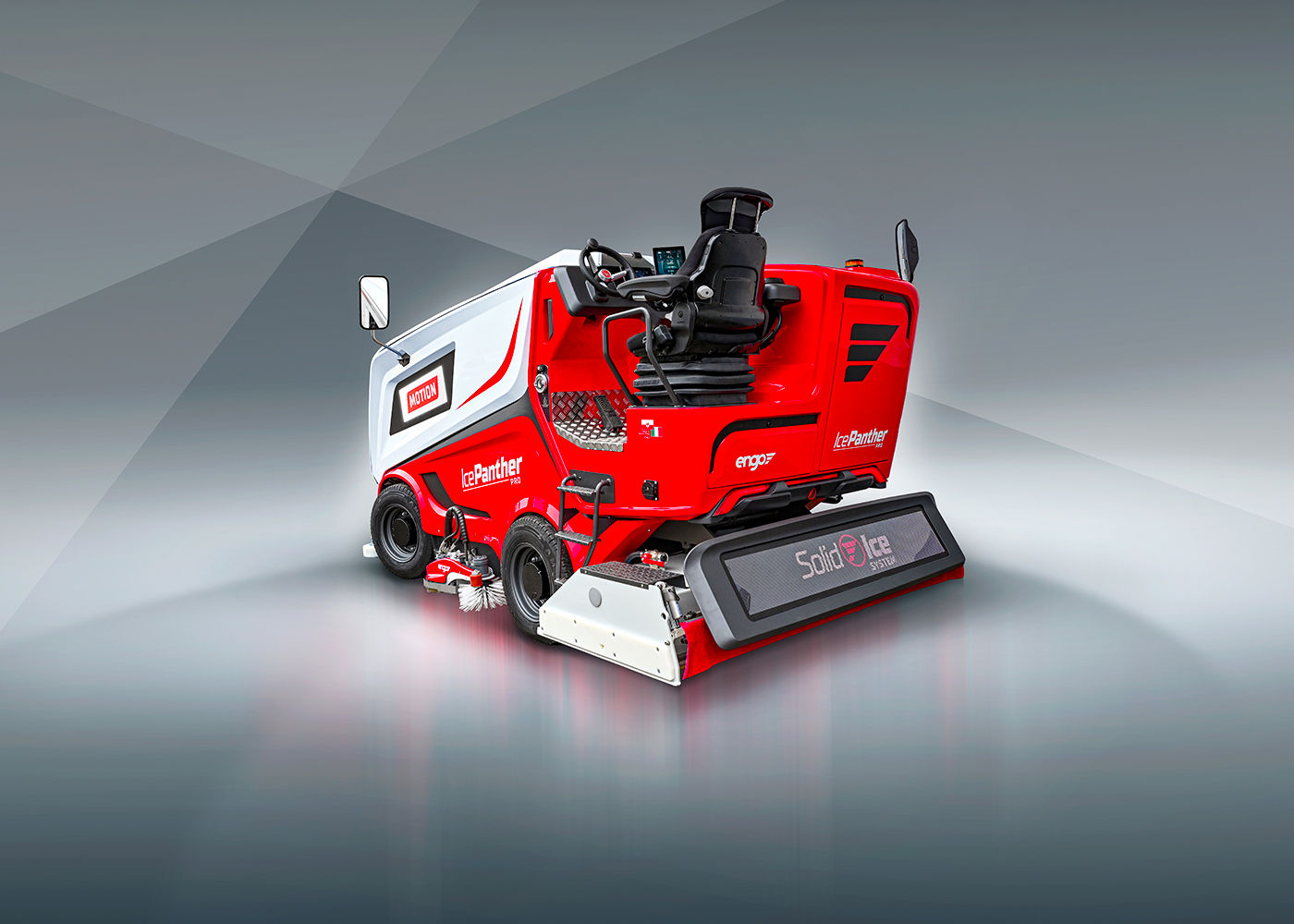

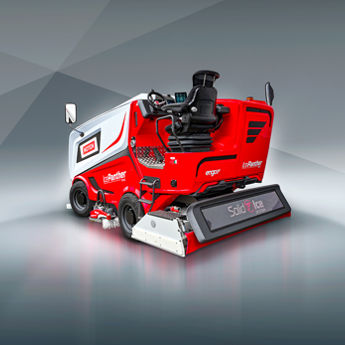

- Solid Ice – Modern water spraying system (optional)
- Package including ice tire washing system and snow tank flushing (optional)
- Hydraulic side milling cutter with electric height adjustment (optional)

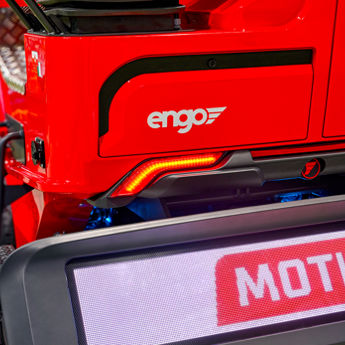

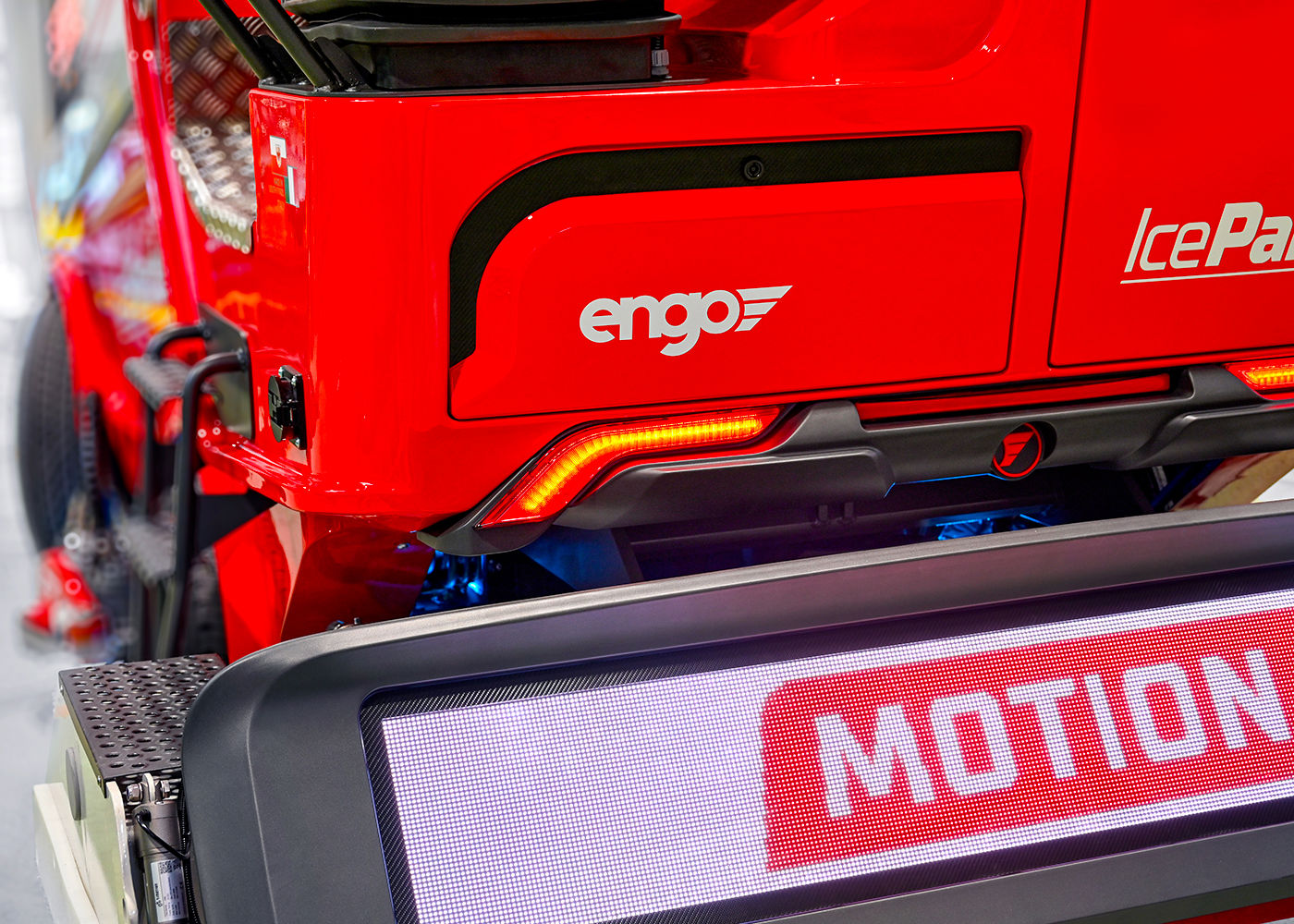

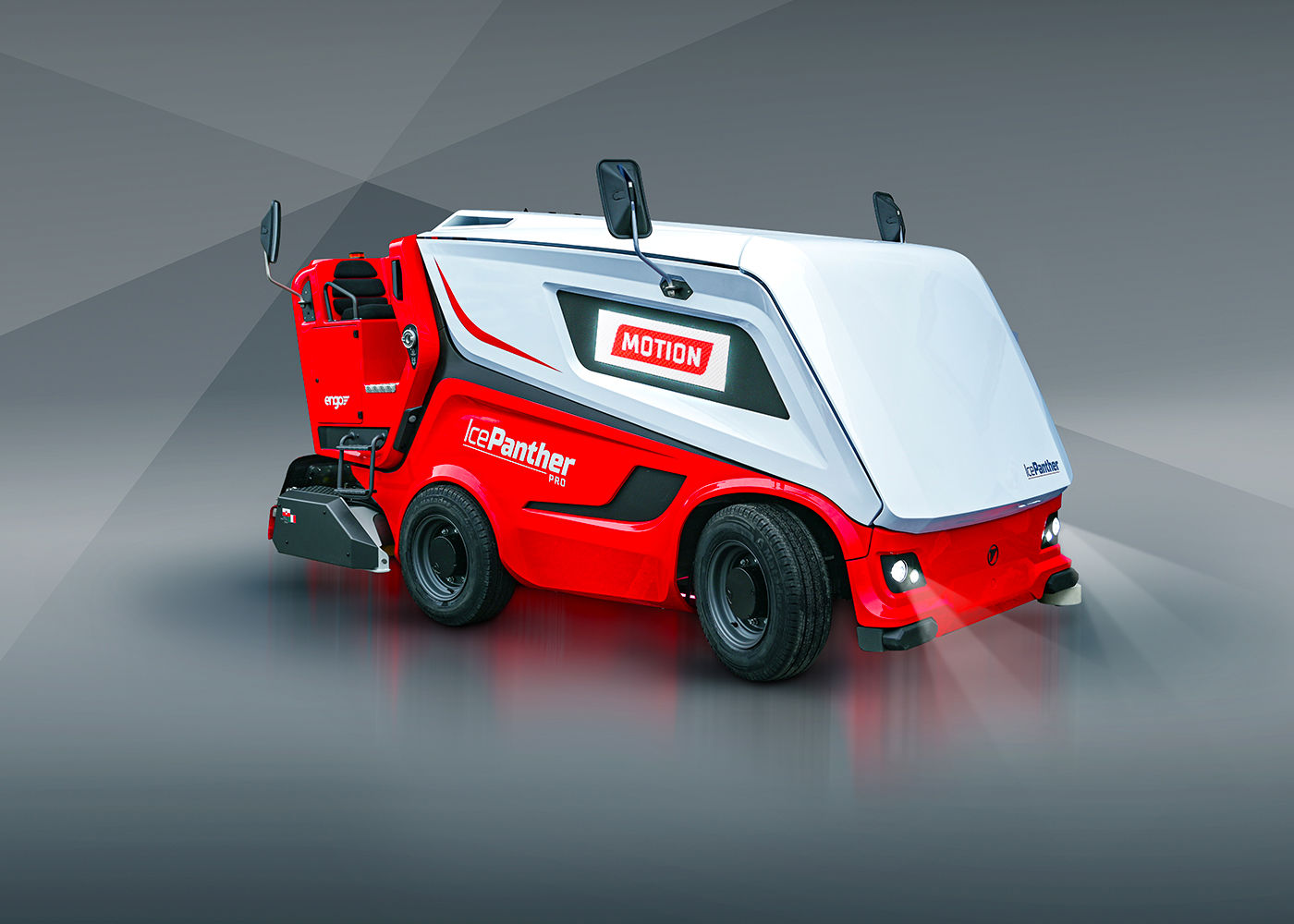

- Motion: Side and sledge advertising displays (optional)
: LITHIUM BATTERY AND CHARGERS
- Battery with LITHIUM technology 80 V / 320 Ah
- Charger with AUTOMOTIVE plug
- Charger with different voltages and certifications
- Transport cart for lithium charger
- Wall mount for lithium charger
: AVAILABLE FROM SEASON 2024/25
Detailed information about standard and optional equipment will be announced soon!

Impressions

CUSTOMISED AND INNOVATIVE

Each model of our machines can be customised and configured according to individual requirements. In addition to the basic equipment, numerous functional and helpful optional extras can be added, making each machine a unique, customised product.

Optionals Personalisation
